Displays & Systems
Showing 55–72 of 133 results
Kingtech - 10.4" XGA TFT highbright
XProduct SKU: PV104006LZR30G
*10.4" XGA colour TFT module. * 1024 (RGB) x 768 resolution * Display Mode: IPS , normally black, viewing angle free * Interface: LVDS 6bit/8 bit * Brightness: 1000 nits
Features
* Module size: 238.6(W)×175.8(H)×5.75(T) mm * Active Area: 210.432(W)×157.824(H) mm * Operating temp: -30 to 80 DegC * Storage Temp: -30to 80 DegC * Backlight: 44 white LED with inbuilt drive circuit (12V @ 0.52A) * Optional PCAP or resistive Touchscreens * HDMI /VGA driver board kits availableCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 12.1" WXGA TFT module
XProduct SKU: PV012103YH30D
* 12.1" colour TFT module * 1280(RGB) x 800 resolution * Display Mode: AAS, normally black, viewing angle free * Interface: LVDS 6bit/8 bit * brightness: 400 nits
Features
* Module Size: 278 x 184 x 10mm * Active Area: 261.12 x 163.2 mm * Operating Temp: -20 to 70 DegC * Storage Temp: -20 to 70 DegC * Backlight: 44 white LED, inbuilt drive circuit (12V @ 0.55A) * Weight: 470g * Touchscreen - please enquire for optionsCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 13.3" FHD TFT module
XProduct SKU: PV013305KSG30F
* 13.3" Full High Def .colour TFT display module * 1920 (RGB) x 1080 resolution * Display mode: IPS, normally black, viewing angle free * Interface: eDP * Brightness: 500nits
Features
Module Size:307.6 x 183.05 x 5.5mm Active area: 293.76 x 165.24 Operating Temp.:0 to 50 DegC Storage Temp.: -20 to 70 DegC Backlight: 54 white LED (9.3V @ 680mA) Touchscreen: please enquire for optionsCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 15.6" FHD TFT module
XProduct SKU: DW1560B2Z0
* 15.6" Full High Def. colour TFT module * 1920 (RGB) x 1080 resolution * Display Mode: IPS, normally black, viewing angle free * Interface: eDP * Brightness: 250 nits
Features
Module size: 204.9(H)*350.7(W)*2.90(T)(Exclude PCBA) mm Active Area: 193.59(H)*344.16(W) mm Operating Temp: 0 to 70 DegC Storage Temp: -20 to 70 DegC Backlight: 40 white LED (80mA @30V) Touchscreen: Please enquire for optionsCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 2.0inch portrait mode TFT
XProduct SKU: PV02000PD24B
2.0inch portrait mode TFT module Display Resolution 176RGB*220 pixels Color Depth 262K Display Mode Normally white Viewing Direction 6 o’ clock MPU Standard 8080 system 8 / 16 bit parallel interface
Features
Module Size 51.30(H)*37.68(W)*2.40(T)(Exclude FPC) mm Active Area (A.A) 39.60(H)*31.68(W) mm LCD Controller/Driver ILI9225G - IC Package Type COG - Power Supply Voltage 2.8~3.3 V Back-light White LED*3 PCS Brightness 180nits Operating Temperature -20 to +70? Storage Temperature -30 to +80? Resistive and Capacitive touchscreen optionsCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 2.4" IPS TFT module
XProduct SKU: PV0241F2CZ0V00-P
2.4" IPS portrait mode TFT module Color Depth 262 K - Display Mode Normally Black Viewing Direction Freeee Display Resolution 240RGB*320 pixels Interface 16-bits MPU - LCM Brightness 250 nits White LED backlight
Features
Module Size 60.4(H)*42.72(W)*2.21(T)(Exclude FPC) mm Active Area (A.A) 48.96(H)*36.72(W) mm LCD Controller/Driver ILI9341V - IC Package Type COG - Power Supply Voltage 2.5~3.3 V Resistive and Capacitive Touchscreen optionsCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 2.4" portait mode TFT
XProduct SKU: DW0240A2BZ
2.4" portrait mode TFT module Display Resolution 240RGB*320 pixels Color Depth 262 K Display Mode Normally white Viewing Direction 6 O’ clock Interface 8,9,16,18-bits MPU / 6,16,18-bits RGB / 3,4Wire SPI. Brightness 220nits (1000 nit version available)
Features
Module Size 60.26(H)*42.72(W)*2.5(T)(Exclude FPC) mm Active Area (A.A) 48.96(H)*36.72(W) mm LCD Controller/Driver ILI9341 - IC Package Type COG - Power Supply Voltage 2.5~3.3 V Back-light White LED*4 PCS restive and capacitive Touchscreen optionsCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 2.4inch portrait mode IPS TFT
XProduct SKU: PV02004LZR50G
2.4inch portrait TFT LCD module Resolution 240(RGB) x320 Display Mode: IPS,Transmissive, Normally Black Viewing Angle Free Interface i80-system 8/16/18-bit MCU interface 3SPI/4SPI/ 16/18-bit RGB interface Brightness 400nits
Features
Outline Dimension 36.05(W)x51.80(H)x1.78(T) Active Area(mm) 30.60(W)x40.80(H) Driving IC ST7789V Operating Temperature -20 to +70? Storage Temperature -30 to +80? Resistive and capacitive touchsreen optionsCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 2.8" IPS VGA TFT module
XProduct SKU: PV02811RJ24L
2.8inch TFT LCD display 480 x 640 resolution IPS mode / Transmissive / Normally black Viewing Angle Free Interface MIPI 2line Brightness 250nits Outline Dimension 46.2(H) ×65.18(V)×2.92(T) Active Area(mm) 43.2 (H)×57.6(V) Driving IC ST7701S Operating Temperature -20 to +70? Storage Temperature -30 to +80? Touch screen Resistive and capacitive touch screen
Features
Outline Dimension 46.2(H) ×65.18(V)×2.92(T) Active Area(mm) 43.2 (H)×57.6(V) Driving IC ST7701S Operating Temperature -20 to +70? Storage Temperature -30 to +80? Resistive and capacitive touch screen optionsCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 2.8" portrait mode TFT module
XProduct SKU: PV028000YX50D
2.8i inch portrait mode TFT module 240(RGB)×320 resolution Display mode TN / Transmissive / Normally White - Interface i80-system 8/16/18-bit MCU interface SPI 16/18-bit RGB interface -- Gray Scale Inversion Direction 12 O’clock -- Viewing Direction 6 O’clock --
Features
Driver IC ILI9341 Module size 50.0(W)×69.2(H)×2.5(T) mm Active area 43.2(W)×57.6(H) mm Dot pitch 0.18(W)×0.18(H) mm Operating temperature -20 ~ +70 °C Storage temperature -30 ~ +80 °C Back Light 4 White LED Resistive and PCAP touchsctreen optionsCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 3.2 inch portrait TFT module
XProduct SKU: PV032005HZ20F-P
3.2 Inch portrait TFT module 240(RGB) x 320 resolution TN mode, 12 "O Clock Gray inversion 8 bit MCU interface Driving IC ST7789 150nits
Features
Outline Dims: 55.04(H ) x77.70(V) x2.46(T) Active Area(mm) 48.60(H) x64.80(V) Display Mode TFT/TRANSMISSIVE Operating Temperature -10 to +60deg C Storage Temperature -20 to +70deg CSpecifications
Outline Dims: 55.04(H ) x77.70(V) x2.46(T) Active Area(mm) 48.60(H) x64.80(V) Viewing Angle 12 "O Clock Gray inversion Driving IC ST7789 Display Mode TFT/TRANSMISSIVE Operating Temperature -10? ~ 60? Storage Temperature -20? ~ 70?CONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 3.2 inch portrait TFT module
XProduct SKU: PV03200DX39B-P
3.2" Portrait TFT module 240(RGB)x 320 resolution TN mode,Best Viewing Direction 6 O’clock Interface MCU 8/16BIT 230nits brightness Backlight 6 LED White Color
Features
Outline Dimension 77.6(L) ×55.04(W) ×2.5(T) mm Active Area 64.8 (L) x48.6(W) mm Controller/driver IC ILI9341V Backlight 6 LED White Color operating temp -20 to +70 degC storage temp-30 to +80 degC touchscreen option availableCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 3.2" IPS TFT module
XProduct SKU: PV02808LZR50H
2.8" IPS TFT module 240(RGB)×320 resolution Display mode ;Normally Black,viewing angle free Driver IC ST7789V -- Interface i80-system 8/16/18-bit MCU interface 3SPI/4SPI/ 16/18-bit RGB interface brightness: 400nits
Features
Module size 50.0(W)×69.2(H)×2.5(T) mm Active area 43.2(W)×57.6(H) mm Operating temperature -20 ~ +70 °C Storage temperature -30 ~ +80 °C Back Light 4 White LED Touchscreen optionsCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 3.34inch round TFT module
XProduct SKU: PV033400AR17A
3.34 inch diameter round a-si TFT module Resolution 320(RGB) X 320 Interface MIPI (Command Mode) Pixel pitch(mm) 0.1875 x 0.1875 Display Mode TN mode,Normally White Viewing Direction 12 o’clock Gray Scale Inversion Direction 6 o’clock
Features
MechanicalCharacteristics: LCM (W x H x D) (mm) 66.20×69.30×2.66 (Not include FPC) Active Area(mm) Diameter 60mm Driver IC ST7796SI Weight (g) 22.50±10% white LED backlight, 600nits brightness HDMI board availableCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 3.46 inch stretch TFT LCD
XProduct SKU: PV034602R0130C
3.46inch stretch aspect TFT LCD display Resolution 340x800 Brightness 350nits IPS mode, viewing angle free MIPI interface (option for RGB) Driving IC ST7701S includes on-cell CTP touch Outline Dimension 37.27(H)×89(V)×1.6(T) Active Area(mm) 33.97(H)×81(V) Operating Temperature -20 to +70? Storage Temperature -30 to +80?
CONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 3.4inch round IPS TFT module
XProduct SKU: PV03400AR39A
3.4 inch round TFT with CTP touch Resolution 800(RGB) x 800 Technology Type a-Si Pixel pitch(um) 109.5*109.5 Display Mode SFT Viewing Direction FREE Interface MIPI 3 lane
Features
Module (W x H x D) (mm) 99.0 x 96.6 x 3.98 Active Area(mm) 87.6*87.6 Surface Treatment HC LED Numbers 8 LEDs Color Depth 16.7M LCD Driver IC ILI9881C CTP Driver IC HX8526-E30 CTP Interface IIC HDMI interface board availableCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Kingtech - 3.5" IPS TFT module
XProduct SKU: PV0350B2Z10-P
3.5" portrait mode TFT Display Resolution 320RGB*480 pixels Display Mode IPS, Normally Black Viewing angle free Color Depth 16.7M LCM Brightness 250 nits
Features
Module Size 53.76(W)*84.18(H)*3.30(T)(Exclude FPC) mm Active Area (A.A) 48.96(W)*73.44(H) mm LCD Controller/Driver ILI9488 - IC Package Type COG - Interface MPU 16-bit - Power Supply Voltage 2.8~3.3 V LCM Brightness 250 nits Back-light White LED*6 Resitive and PCAP touchscreen optionsCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry

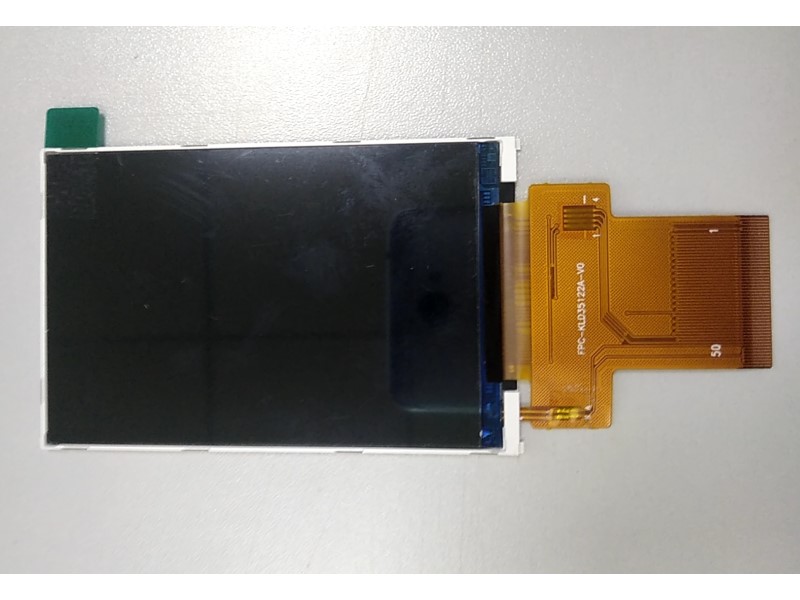

Kingtech - 3.5" IPS TFT module
XProduct SKU: PV035HV-CINA5007-P
3.5" IPS TFT LCD module 320(RGB)x480 resolution Normally black, viewing angle free Driver IC: ILI9488 Interface options: 8-/ 9-/16-/18- 8080-MCU 4-lines / 3-lines SPI + 16-/18-bit RGB Brightness: 350nits
Features
Module size: 53.76(H) x 84.18(W) x 2.1(T) mm Active Area: 48.96(H) x 73.44(W) mm Operating Temp: -20 to 70 DegC Storage Temp: -30 to 80 DegC Backlight: 6 x white LED in parallell (120mA @3v) T/S options: resistive and PCAPCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
