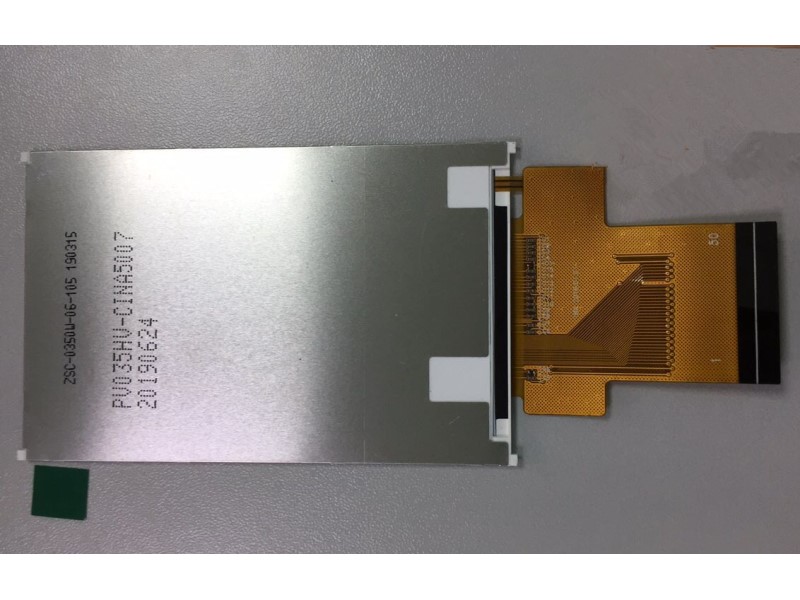

Kingtech – 3.5″ IPS TFT module

Product Overview

3.5″ portrait mode TFT
Display Resolution 320RGB*480 pixels
Display Mode IPS, Normally Black
Viewing angle free
Color Depth 16.7M
LCM Brightness 250 nits


Module Size 53.76(W)*84.18(H)*3.30(T)(Exclude FPC) mm
Active Area (A.A) 48.96(W)*73.44(H) mm
LCD Controller/Driver ILI9488 –
IC Package Type COG –
Interface MPU 16-bit –
Power Supply Voltage 2.8~3.3 V
LCM Brightness 250 nits
Back-light White LED*6
Resitive and PCAP touchscreen options



3.5inch TFT, 320(RGB)x480res IPS mode,16 bit MPU interface 250nits
