Product Overview

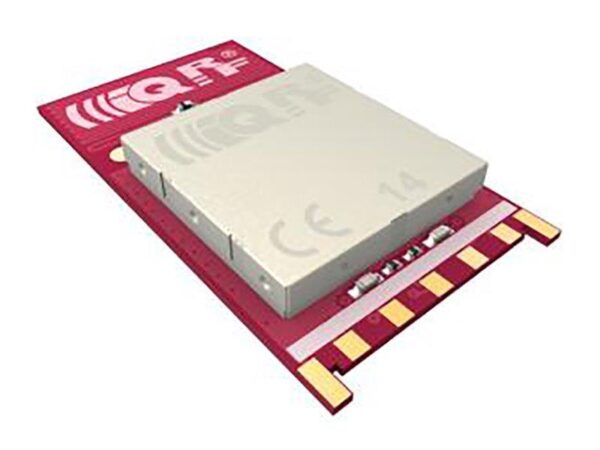

TR-75D RF Transceiver Module 868MHz and 916 MHz license free ISM (Industry, Scientific and Medical) frequency band
Its highly integrated ready-to-use design containing MCU, RF circuitry, serial EEPROM and on-board antenna requires no external components. Vertical mounting and very small dimensions allow space saving. Extended RF power results in higher RF range. Extra low power consumption fits for battery powered applications. MCU with built-in operating system significantly reduces application development time. Optional DPA framework supports applications, even without programming.
Key features include;
> Operating System (upgradeable at the user)
> DPA framework for Data controlled approach
> GFSK modulation
> Selectable RF band 868/916 MHz, multiple channel
> RF output power 10 mW
> MCU with extended resources, user interrupt capability
> Extra low power consumption, power management modes
> SPI interface supported by OS in background
> Serial EEPROM 256 Kb
> PWM output
> Programmable HW timer
> Battery monitoring
> 12 pins (9 I/O pins, 1 input only pin)
> A/D converter (3 channels)
> Analog comparator
> Vertical mounting, SIM card compatible
> Shielding Can
> Small Dimensions
Applications where this item is best fit include;
> Bidirectional RF communication
> Point-to-point or network wireless connectivity
> Telemetry, AMR (automatic meter reading)
> WSN (wireless sensor network)
> Building automation
> Street lighting control
> Wireless monitoring, control and regulation
> Remote data acquisition
> RF connectivity in many other fields
> Also for municipal and indoor areas
> Internet of Things
