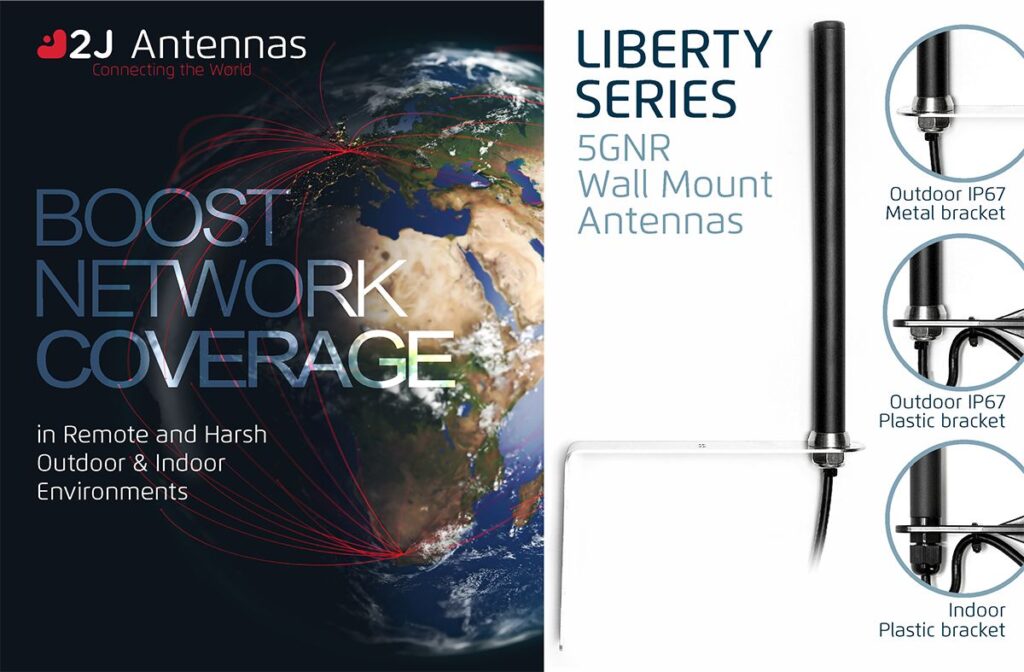

Introducing the latest 2J Liberty 5GNR wall mount antenna series, designed to boost outdoor or indoor cellular coverage in remote and harsh environments.
The ultra wideband, IP67 certified 5GNR antenna provides durability, high performance and superior quality in challenging environments, operating within sub-6 GHz cellular bands (617-5925 MHz frequency range). This wideband antenna is fully 4G LTE backwards compatible with existing networks and is tuned for devices that operate on 5G NR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X -Mx, CAT-NBx, NB-IoT, 3G and 2G standards.
The Liberty series is the #1 choice for the next generation of devices by offering backward compatibility with existing technologies reducing overall implementation costs for providers and manufacturers.
View the 2J Liberty 5GNR Antenna series below, offering an omni-directional radiation pattern giving it a 360-degree uninterrupted signal quality, a stable 5GNR peak gain of ~4.0 dBi and a maximum efficiency of up to ~66.6% (above the industry standard).
Contact Us for More Information
Ideal applications:
- Wireless broadband communication
- Building management
- Telecommunication and mobile devices
- Alarm panels
- 5GNR and LTE applications
- Electrical metering
- Data terminals
- Smart devices
- First responders and public safety communications
- Mobile HD TV
- Smart metering and sensors
- Commercial, industrial, or home automation
- Base stations and routers
- High traffic device connectivity
- Industrial/commercial/residential IoT/smart home/office
- ATM machines
- Vending machines
2J2183-C315N
Connections (1)
5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Dimensions: 232 × Ø 20 (Ø 16)
Mounting: Connector Mount
- Dipole Antenna
- Ground Plane Independent
- Wide band Antenna
- 617-2690 MHz Sub 6GHz Bands
- Full 4GLTE backward compatibility
- 2.8 dBi 5G NR Peak Gain
- N-Male connector
2J2183B-B05H
Connections (1)
5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Dimensions: 325 × 36 × 155 (220 × Ø 16)
Mounting: Wall Mount
Certificates: IP67
- Ultra Wide band Antenna
- 617-5925 MHz Sub 6GHz Bands
- Full 4GLTE backward compatibility
- Ground Plane Independent
- 4.0 dBi 5G NR Peak Gain
- High Performance
- Antenna Bracket included
- Waterproof Antenna
- Customizable Cable and Connector
2J2183B-B05H
Connections (1)
5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Dimensions: 325 × 36 × 155 (220 × Ø 16)
Mounting: Wall Mount
Certificates: IP67
- Ultra Wide band Antenna
- 617-5925 MHz Sub 6GHz Bands
- Full 4GLTE backward compatibility
- Ground Plane Independent
- 4.0 dBi 5G NR Peak Gain
- High Performance
- Antenna Bracket included
- Waterproof Antenna
- Customizable Cable and Connector
2J2183B-B07H
Connections (1)
5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Dimensions: 272 × 30 × 115 (220 × Ø 16)
Mounting: Wall Mount
Certificates: IP67
- Ultra Wide band Antenna
- 617-5925 MHz Sub 6GHz Bands
- Full 4GLTE backward compatibility
- Ground Plane Independent
- 4.0 dBi 5G NR Peak Gain
- High Performance
- Antenna Bracket included
- Waterproof Antenna
- Customizable Cable and Connector
2J2183K-B07H
Connections (1) 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Dimensions: 271 × 30 × 115 (219 × Ø 16)
Mounting: Wall Mount
- Ultra Wide band Antenna
- 617-5925 MHz Sub 6GHz Bands
- Full 4GLTE backward compatibility
- Ground Plane Independent
- 4.0 dBi 5G NR Peak Gain
- High Performance
- Antenna Bracket included
- Customizable Cable and Connector
