Product Overview
BR-330AC-LP
The Lowest Power Enterprise Wi-Fi Bridge Allows Flexible Power Supply Options for Easier Installation
The BR-330AC-LP is the enterprise Wi-Fi 5 Ethernet to Wi-Fi bridge with the lowest power consumption in the market allowing it to be USB powered (with optional 131-20175-100 cable). It supports WPA enterprise security and TLS 1.2. The BR-330AC-LP enables a number of medical and industrial devices with the secure and reliable wireless connectivity. Its low power operation provides users with more flexibility in its installation as the users have more options for the power supply source.
Low-power, secure, efficient, and reliable Wi-Fi bridge
The BR-330AC-LP is the ideal solution to reliably connect Ethernet IoT devices to a secure enterprise Wi-Fi network. Thanks to its low power operation, a USB battery pack can power the bridge for a longer duration, USB port(s) can be equipped on an Ethernet device, etc., eliminating the dedicated AC power for the bridge.
The BR-330AC-LP is enabled by Silex’s Sx-590 intelligent module which has a superior track record in the medical industry to provide secure and reliable Wi-Fi connectivity to medical devices.
Features
Low Power Consumption
The BR-330AC-LP is the enterprise Ethernet to Wi-Fi bridge operating with the lowest power consumption in the industry.

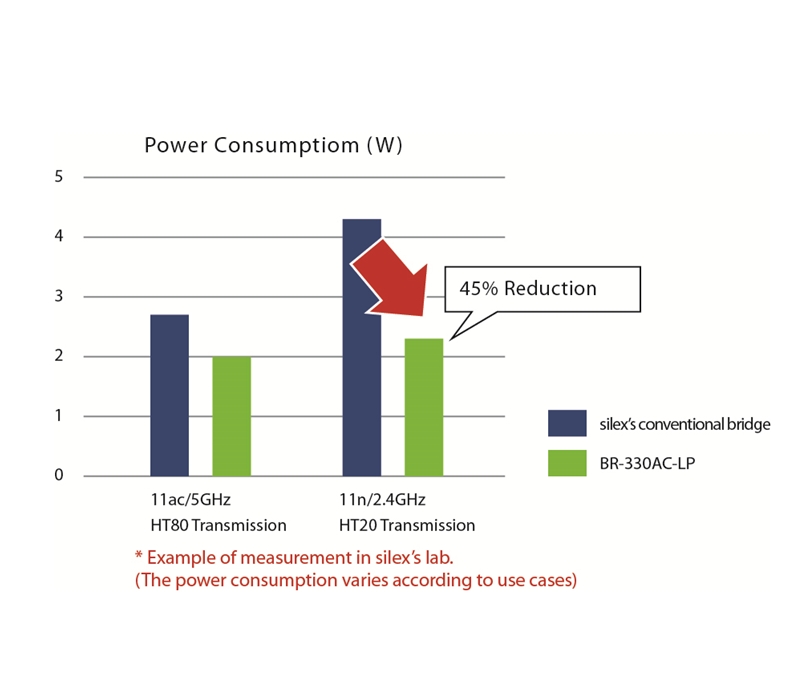

The BR-330AC-LP consumes less than 2.5W (RMS: Root Mean Square) while transmitting the radio signal. The low-power operation will allow longer operation time with a large-capacity power bank when the Wi-Fi bridge is used with a mobility device.
– 802.1X Enterprise Security
The BR-330AC-LP supports 802.1x authentication to join the enterprise network through the Wi-Fi network.
– MAC Address Filtering
– Fast-Roaming for mobility
– Easy Configuration for Quick Installation
Specifications
Model Number BR-330AC-LP
Wired LAN
RJ-45 Connector x 1 10Base-T / 100Base-TX (Auto-detection)
Wireless Standard
Dual-band 802.11a/b/g/n/ac 1×1
Wi-Fi Security
Authentication: WPA2-Enterprise, WPA-Enterprise , WPA2-Personal, WPA-Personal, Open
Encryption: WEP, AES, Auto
Channels
2.4GHz bands
(US) CH1 – CH11
(EU) CH1-CH13
5GHz bands
(US) W52, W53, W56*, W58
(EU) W52, W53, W56**
W52: 36, 40, 44, 48
W53: 52, 56, 60, 64
W56: 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144
W58: 149, 153, 157, 161, 165
* Channel 120 – 128 is disabled to comply with Canadian regulation.
** Channel 144 is disabled for EU SKU
Switch
Push switch x 1
LED
Power, WLAN, Status
Storage Temperature
Humidity
-20 ~ + 70°C
20 ~ 90% RH
Operating Temperature
Humidity
0 ~ + 50°C
20% ~ 80% RH (non-condensing)
Max # of Clients
16 clients
Power
5V DC Jack (EIAJ Class2) 4.25W
USB (with optional 131-20175-100 cable)
Regulatory Compliance
FCC Class B, ICES Class B, CE Class B, VCCI Class B, RoHS
Supported Software AMC Manager®
Dimensions
126mm x 76mm x 24mm
Weight
255g (body)
Warranty
5 years
