Raystar Optronics – 10.1″ MIPI LCD Display, MIPI LCD Panel, MIPI Display Panel

Product Overview

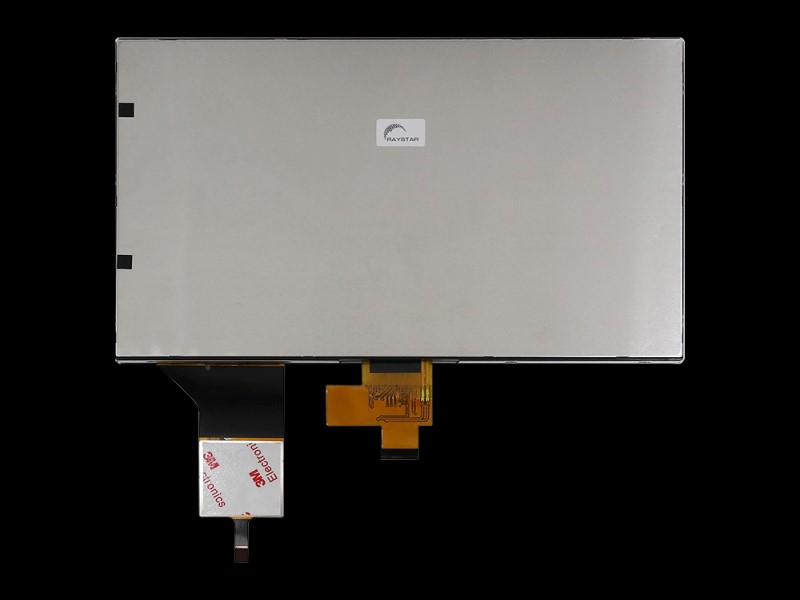

High Brightness 10.1 inch 1024×600 IPS TFT LCD with Touchscreen, MIPI

Features

RFH1010J-AYH-MNB is a 10.1-inch, projected capacitive touch screen IPS TFT Display and 16:9 aspect ratio. Its resolution is 1024×600 pixels. The module features wide viewing angle (85/85/85/85 degree) thanks to the IPS panel which is one of the most popular techniques on the market now.

This 10.1 inch IPS Display has driver IC EK79007AD3 + EK73217BCGA supporting 4-lanes MIPI interface. It has high brightness, with a brightness of 900 cd/? and contrast ratio (typical value) of 800:1. The module works within the temperature -20 to+70?, storage temperature covers from-30 to+80?.

Related products no.:
RFH1010J-AYH-MNN: Without Touch Screen
RFH1010J-AYH-MNB: With Projected Capacitive Touch Screen
RFH1010J-AYH-MNS: With Resistive Touch Screen

Parts

RFH1010J-AYH-MNB

MIPI interface TFT Touch Options

Enquire for availability
