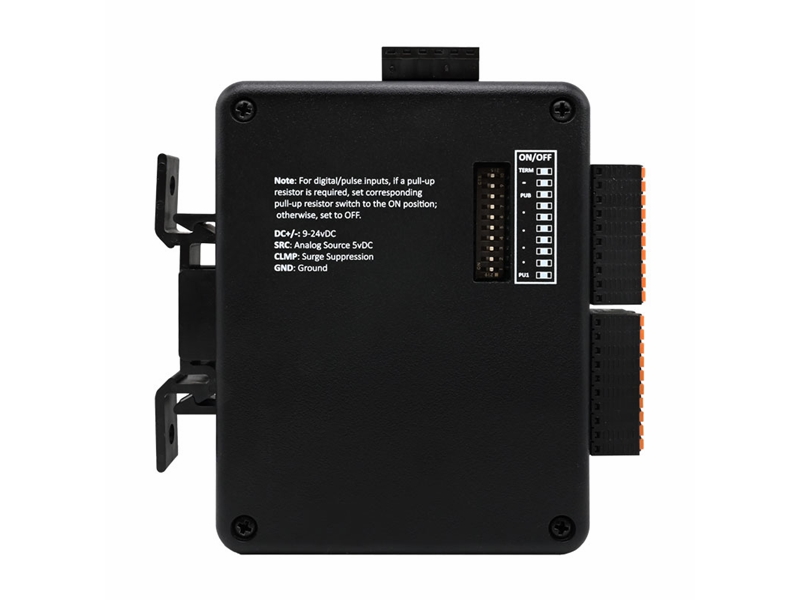

Digi Z1201 I/O Module

Giving you a greater degree of scalability for remote I/O control and monitoring applications

Avoid the extra cost of an additional controller and effort of maintaining multiple applications. Start with a Digi Z45 Industrial Controller and add I/O by connecting Digi Z1201 expansion modules for a solution tailored to your system.

With support for various I/O combinations — relays, digital, analog, pulse, inputs and outputs — the expandable Digi Z1201 I/O module provides monitoring and controlling for use cases requiring unique I/O combinations.

On-device logic is supported from anywhere by Digi’s Z45 Industrial Controllers. Our controllers perform simple to medium complexity control logic, similar to that of a Programmable Logic Controller (PLC).

Unlike a PLC, our controllers are designed for remote, distributed I/O applications in a single end-to-end solution. Data communication between Z45 Industrial Controllers and Z1201 modules is provided by a 2-wire RS-485 connection with addressing and individual pin function established by program control using our Automation Control Application.

Digi Z1201 is a 16-pin, multifunction I/O module consisting of 8 collector outputs, and 8 multifunction inputs, each of which can be configured under software control for analog, digital or pulse operation. The module can be daisy-chained for expansion beyond a single I/O module.

Features

SPECIFICATIONS

GENERAL FEATURES
– RS-485, 2-wire interface
– 8 open collector outputs, 30 VDC max
– 8 multi-mode inputs, 30 VDC max
– Pulse counting
– Analog inputs
– Digital outputs
INPUTS
– Maximum input voltage: 30 VDC
– Input logic, Low /= 4
– Sample rate: 512 Hz
CONFIGURABLE I/O: DIGITAL OUTPUTS
– Open collector output rating: 30 V 350 mA single output, 250 mA with all outputs on
– Max update frequency: 60 Hz
– Pulse width modulation: 7.8 KHz, 8-bit resolution
CONFIGURABLE I/O: ANALOG INPUTS
– Measurable range: 0-5 VDC
– Read frequency: 20 Hz
– Analog input A/D conversion: 12-bit with 10 mV
CONFIGURABLE I/O: PULSE INPUTS
– Max pulse width: 3 msec
– Max count stored between reads: 32,767
CONTROL INTERFACE
– RS-485 2-wire
– Protocol: Proprietary Automation Control
POWER Input:
– 9-24 VDC (external source)
– Consumption: 100 mA (excluding active inputs)
ENVIRONMENTAL
– Operating temperature: -30 °C to 70 °C (-22 °F to 158 °F)
– Humidity: 90% non-condensing
MOUNTING
– 35 mm DIN
DIMENSIONS
– 10.719 x 6.02 x 3.33 cm (4.22 x 2.37 x 1.312 in), excluding terminal block and DIN clip
WEIGHT
– 0.29 kg (0.63 lb), without power adapter
WARRANTY
– 1-year standard warranty
