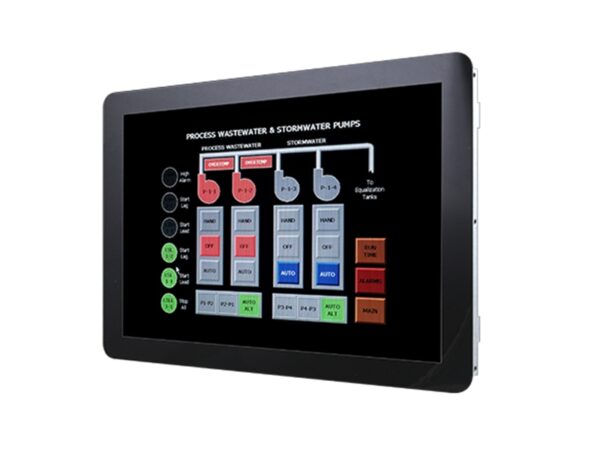

Avalue – OFT-10WR1 10.1″ Open Frame Tablet with RK3288

Product Overview

RockChip RK3288W Cortex-A17 Quad Core 1.6GHz2GB RAM16GB eMMCPCAP Touch10/100/1000 EthernetM.2 B-Key(3042) connector socket802.11 b/g/n Wireless LAN and Bluetooth 4.0DC 12~24V InputG sensorOptional Powered LAN 802.3AT Optional 1000 nits / PCAP Touch with 3mm CGOS Image support Android 8.1


System Information
Processor RockChip RK3288W Cortex-A17 Quad Core 1.6GHz
System Memory 2GB DDR3L RAM
Storage 16GB eMMC
LCD Size 10.1″
Resolution 1280×800
Pixel pitch 0.1695(H)X0.1695(V) mm
Luminance 350 cd/m2(typ) Optional 1000 nits
Contrast ratio 800
Viewing angle 85 (U), 85 (D), 85 (L), 85 ( R)
Response time 30 ms
Touch Type Projective Capacitive

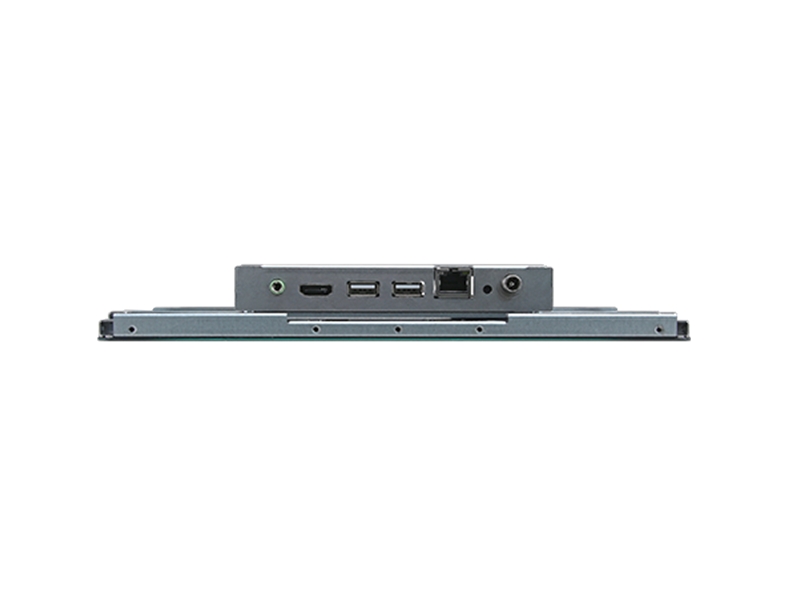

External I/O Connector 1 x Power Jack
1 x HDMI Port
2 x USB Type A Host
1 x RJ45
1 x Headphone Jack
1 x Reset
Internal I/O Connector 1 x Micro USB
1 x USB interface , 1 x DMIC interface
1 x USB touch interface
1 x M.2 B-Key(3042)
1 x touch button control(power/vol/brightness)
1 x Power interface (12~24V)
1 x Li-Battery connector
1 x JLVDS1
1 x AMIC interface
1 x Speaker interface
1 x JSEN1 interface (I2C x2)
1 x JITP1 interface
1 x Debug port
1 x RS232 interface
1 x RS232 , RS485
1 x JGPIO1 (GPIO 16bit)
1 x RTC Battery interface
1 x Micro SIM Card socket for LTE module
1 x Micro SD slot
Wireless Communication
WLAN 802.11 b/g/n
Multiple Display LVDS+HDMI
Certification Information CE, FCC Class A
Mechanical & Environmental
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 60°C
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H) 252 x 166 x 32.6mm
Weight 1.18kg
Power Requirement DC 12~24V Input
Power Mode DC Jack, DC input 4pin header
(Optional Powered LAN 802.3AT)
Software Support
OS Information Android 8.1
Ordering Information
Ordering Information OFT-10WR1-DC in
OFT-10WR1-Powered LAN



10" Open Frame PCAP RK3288 802.11 b/g/n Wireless LAN Android
