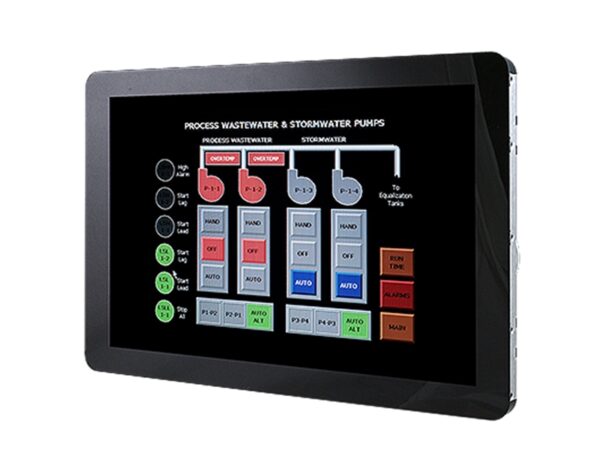

Product Overview
Intel® Atom™ Processor Z83502GB RAM or 4GB RAM32GB or 64GB eMMCProjective Capacitive Touch10/100 Ethernet M.2 B-Key(3042) connector socket802.11 b/g/n/ac Wireless LANWindows 10 / Linux OS supported DC 12~24V Input
Features
System Information
Processor Intel Atom x5-8350 Quad Core CPU 1.44 GHz, up to 1.92 GHz
System Memory 2GB or 4GB DDR3L RAM on board
Storage
Storage 32GB or 64GB eMMC on board
Panel
LCD Size 10.1″
LCD Panel TFT LCD
Display Type WXGA
Resolution 1280×800
Pixel pitch 0.1695 x 0.1695 mm
Luminance 350 cd/m²
Contrast ratio 800
Viewing angle 85 (U), 85 (D), 85 (L), 85 ( R)
Response time 30ms
Backlight LED
Touch Type Projective Capacitive
Touch Light Transmission 86%
I/O
External I/O Connector 1 x power jack
1 x HDMI
1 x USB 3.0 Type A
1 x USB 2.0 Type A
1 x RJ45
1 x Headphone Jack
1 x Reset button
Internal I/O Connector 1 x Micro USB
1 x USB interface , 1 x DMIC interface
1 x USB touch interface
1 x M.2 B-Key(3042)
1 x touch button control(power/vol/brightness)
1 x Power interface (12~24V)
1 x JLVDS1
1 x AMIC interface
1 x Speaker interface
1 x JSEN1 interface (I2C x2)
1 x JTP1 interface (I2C)
1 x Debug port (Tx/Rx)
1 x RS232 (Tx/Rx/Rts/Cts) interface
1 x RS232 (Tx/Rx/Rts/Cts) , RS485 (Tx/Rx/Rts/Cts)
1 x JGPIO1 (GPIO 16bit)
1 x RTC Battery interface
1 x Micro SIM Card socket for LTE module
1 x Micro SD slot
Wireless Communication
WLAN 802.11 a/b/g/n/ac
Display
Multiple Display LVDS + HDMI
Certifications
Certification Information CE, FCC Class A
Mechanical & Environmental
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 60°C
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H) 252 x 166 x 32.65mm
Weight 1.18kg
Power Requirement DC 12~24V Input
Power Mode DC Jack, DC input 4pin header
Software Support
OS Information 2019 Windows 10(64 bit) / Ubuntu 19.04(64 bit)
Ordering Information
Ordering Information OFT-10W03-5004-A1R _OFT-10W03-2G_32G- Ubuntu 19.04
OFT-10W03-5005-A1R_OFT-10W03-2G_32G-Win10
OFT-10W03-5007-A1R_OFT-10W03-4G_64G- Ubuntu 19.04
OFT-10W03-5008-A1R_OFT-07W03-4G_64G-Win10 ;
