OFP-21W33

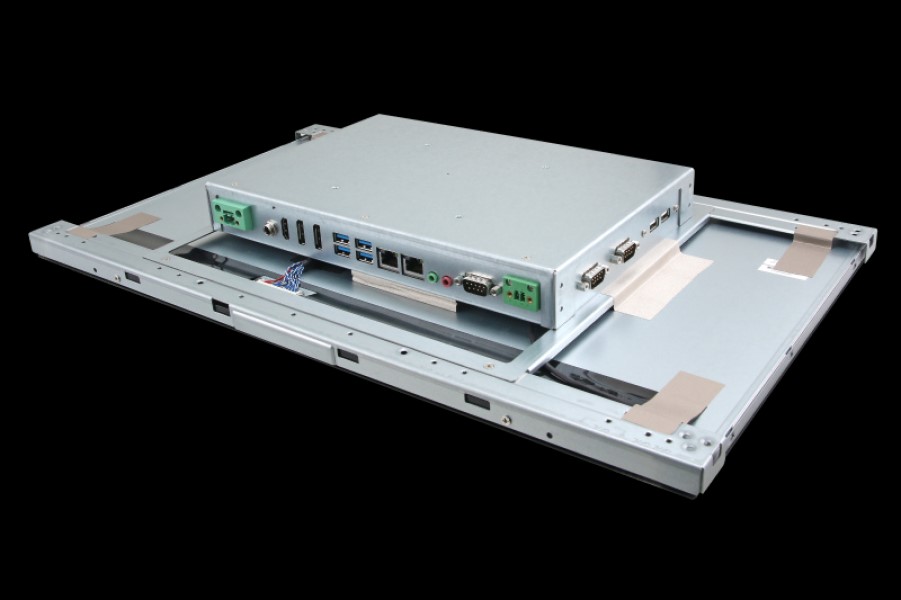

21.5” Full-HD PCAP Multi-Touch Fanless Open Frame Panel PC with Intel® Celeron® J3455 Processor
21.5” Full-HD Open frame panel PC with PCAP TouchOnboard Intel® Celeron® J3455 SoC BGA Processor (2M Cache, up to 2.30 GHz)2 x 204-pin DDR3L 1600 & 1333MHz SO-DIMM supports up to 16GB2x GbE LAN, 4 x USB 3.0, Line-out, Mic-in, 1 x COM, DP++, HDMI/DPOption for 4 x COM, 4 x USB2.0, 16-bit GPIO with DB9 connectorSlim & Strength DesignFanless Operation from 0° ~ 45°CWide Voltage Input +12 ~ 24VdcOption for Wi-Fi & BT functionOption for Infineon SLB9665 TPM 2.0
Features
System Information
Processor Onboard Intel® Celeron® J3455 SoC BGA Processor (2M Cache, up to 2.30 GHz)
System Memory Default with 4GB DDR3L Memory
Option supports up to 16GB DDR3L 1600 & 1333MHz SO-DIMM
I/O Chipset EC iTE IT8528
BIOS Information AMI 128Mbit SPI BIOS
Watchdog Timer H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
H/W Status Monitor Monitoring System Temperature and Voltage with Auto Throttling Control
CPU Cooler (Type) Fanless Heatsink
Board EMX-APLP
Expansion
Expansion 1 x M.2 (2230) A-Key support WiFi module
Storage
Storage Default with 64GB mSATA
Other Storage Device Reserve space for 1 x 2.5” Drive Bay design (by option)
Panel
LCD Size 21.5″, 16:9
Display Type Full HD
B/L Inverter/Converter LCD built in
Resolution 1920 x 1080
Pixel pitch 0.24795(H) x 0.24795(V)
Luminance 250 cd/m²
Contrast ratio 2000
Viewing angle 89 (U), 89 (D), 89 (L), 89 (R)
Response time 35 ms
Backlight LED
Touch Type Projective Capacitive Multi-Touch supports up to 10 points
Touch Light Transmission 89 %
Touch Controller EETI
I/O
USB Port 4 x USB 3.0, 4 x USB 2.0 (option)
COM Port 1 x RS232(default)/RS422/485, 4 x RS232(option, pin9 without power)
DIO 16-bit GPIO with DB9 connector(option)
Expansion 1 x M.2 (2230) A-Key support WiFi module
Other 2 x Antenna Mounting with Dust Cover (Reserve)
DC In/Out Characteristics
Power Type AT/ATX
Display
Graphic Chipset Intel® HD Graphics 500
Spec. & Resolution HDMI/DP: 3840 x 2160 @ 30Hz, 2560 x 1600 @ 30Hz
Audio
Audio Codec Realtek ALC662 supports 2-CH
Audio Interface Mic-in, Line-out
Audio Amplifier 2 x Stereo Class-D 3W Audio Amplifier
Certifications
Certification Information CE / FCC Class A
Ethernet
LAN Chipset 2 x Intel I211AT Gigabit Ethernet
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ45
Mechanical & Environmental
Operating Temperature 0°C ~ 45°C
Storage Temperature -20°C ~ 60°C
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Dimension (W x L x H) 501.9 x 296.2 x 52.4 mm
Weight 4.1Kgs
Vibration Test With mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis
Shock Test Operating with mSATA : IEC 60068-2-27 testing procedures, 10G for operation mode
Mounting Kit Flush / Panel / Wall Mount with mounting kits, VESA 100mm x 100mm
Power Requirement +12V~24V DC in
3 pins Phoenix connector and Lockable DC Jack
Extend Power Connector for on/off or Reset
Power Mode AT/ATX
System Fan Fanless
Relative Humidity 0~90% Relative Humidity, Non-condensing
Fanless Yes
Drop ISTA 2A, IEC-60068-2-32 Test:Ed
Software Support
OS Information Windows 10 IoT, Linux, x86 Android 8.1
Ordering Information
Ordering Information OFP-21W33-345-A1R
21.5” Full-HD Multi Touch Open Frame Panel PC / Intel Celeron J3455, 4GR,64GB mSATA,4USB3,COM,2LAN,DP++,DP,HDMI without adapter
ACC-OFP-21-PMT-01R
Panel Mount Kits for OFP-21W series
ACC-OFP-21-WMT-01R
Wall Mount Kits for OFP-21W series
