Product Overview
7″ WXGA PCAP Multi-Touch Fanless Open Frame Panel PC with Intel® Celeron® N3350/J3455 Processor
Features
:- 7″WXGA Open frame panel PC with PCAP Touch
:- Onboard Intel® Celeron® N3350/J3455 SoC BGA Processor
:- 1x 204-pin DDR3L 1866/1600/1333 MHz SO-DIMM supports up to 8GB

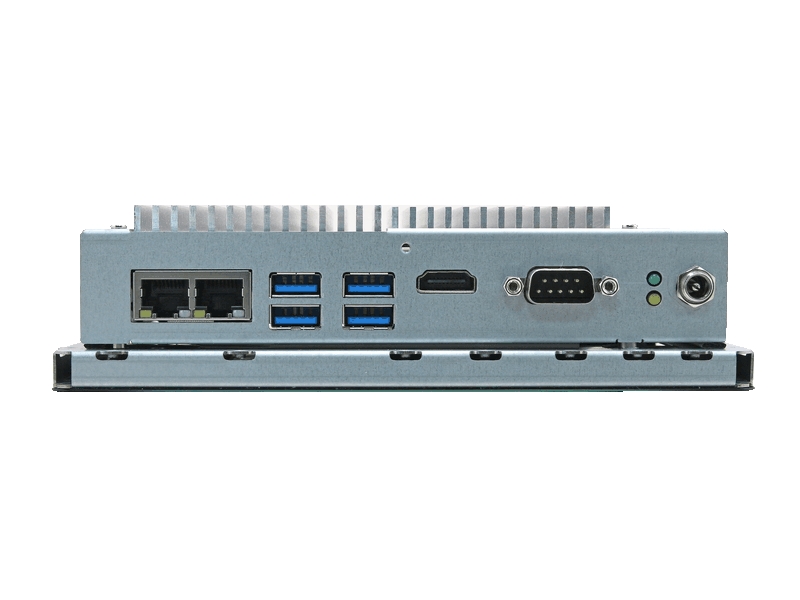

:- 1x HDMI, 2x GbE LAN, 4x USB 3.2(Gen1x1, 5Gbps), 2x USB2.0 (pin header)
:- 1x RS-232, 1x RS-232/422/485 (pin header)
:- 1x Full Size Mini-PCIe support mSATA, 1x Half Size Mini-PCIe for option WIFI/BT
:- 1x 8bit GPIO (pin header)
:- Slim & Strength Design
:- Fanless Operation from 0° ~ 45°C
:- Wide Voltage Input +12 ~ 26Vdc
Specifications
System Information
Processor Onboard Intel® Celeron® N3350/ J3455 SoC BGA Processor
System Memory Default with 4GB DDR3L Memory
Option supports up to 8GB DDR3L 1866/1600/1333 MHz SO-DIMM
I/O Chipset EC iTE IT8528
BIOS Information AMI 128Mbit SPI BIOS
Watchdog Timer H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
H/W Status Monitor Monitoring System Temperature and Voltage with Auto Throttling Control
CPU Cooler (Type) Fanless Heatsink
Board ECM-APL2-B1
Expansion
Expansion
1 x Full size Mini PCIe Supports mSATA
1 x Half size Mini PCIe for option Wi-Fi/BT
Storage
Storage Default with 64GB mSATA
(Support up to 512GB)
Panel
LCD Size 7″, 16:10
Display Type WXGA
Resolution 1280 x 800
Pixel pitch 0.03925(H) x 0.11775(V)
Luminance 300 cd/m²
Contrast ratio 900
Viewing angle 89 (U), 89 (D), 89 (L), 89 (R)
Response time 30 ms
Backlight LED
Touch Type Projective Capacitive Multi-Touch supports up to 10 points
Touch Light Transmission 89 %
Touch Controller EETI
I/O
USB Port
4 x USB 3.2 (Gen1x1, 5Gbps)
2 x USB 2.0 (option by pin header)
COM Port 1 x RS-232
1 x RS-232/422/485 option by pin header
DIO 8-bit GPIO option by pin header
HDMI 1 x HDMI 1.4b: Max. Resolution 3840 x 2160 @ 30Hz
DC In/Out Characteristics
Power Type AT/ATX
Audio
Audio Codec Realtek ALC888S supports 5.1-CH
Certifications
Certification Information CE, FCC Class A
Ethernet
LAN Chipset 2 x Intel® I211AT
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ45
Mechanical & Environmental
Operating Temperature 0°C ~ 45°C
Storage Temperature -10°C ~ 50°C
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H) 183.1 x 115.85 x 48.1 mm
Weight 700g
Vibration Test With mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis
Shock Test Operating with mSATA : IEC 60068-2-27 testing procedures, 10G for operation mode
Mounting Kit Option with Flush / Panel Mounting kits
Power Requirement +12V~26V DC in
Lockable DC Jack
Power Mode AT/ATX
System Fan Fanless
Relative Humidity 40°C @ 95% Relative Humidity, Non-condensing
Fanless Yes
Drop ISTA 2A, IEC-60068-2-32 Test:Ed
Software Support
OS Information
Windows 10
Ubuntu 16.04
Android x86 8.1
Ordering Information
Ordering Information
OFP-07W33-345-A1R
7″ WXGA Multi Touch Open Frame Panel PC / Intel Celeron J3455, 4GR,64GB mSATA,4USB3,COM,2LAN,HDMI without adapter
OFP-07W33-335-A1R
7″ WXGA Multi Touch Open Frame Panel PC / Intel Celeron N3350, 4GR,64GB mSATA,4USB3,COM,2LAN,HDMI without adapter
ACC-ADP-060N-08R
AC/DC adapter 12V/5A 90 degree Screw Type
E1702031833R USA Power Cord
E1702031000R EU Power Cord
E1702031834R Japan Power Cord
E1702031830R UK Power Cord
E1702031831R Australia Power Cord
