Avalue – EPB-1001 Battery Expansion Power Bank Battery Pack: UN38.3, UL2054, EN 62133-2:2017 (Battery body EN

Product Overview

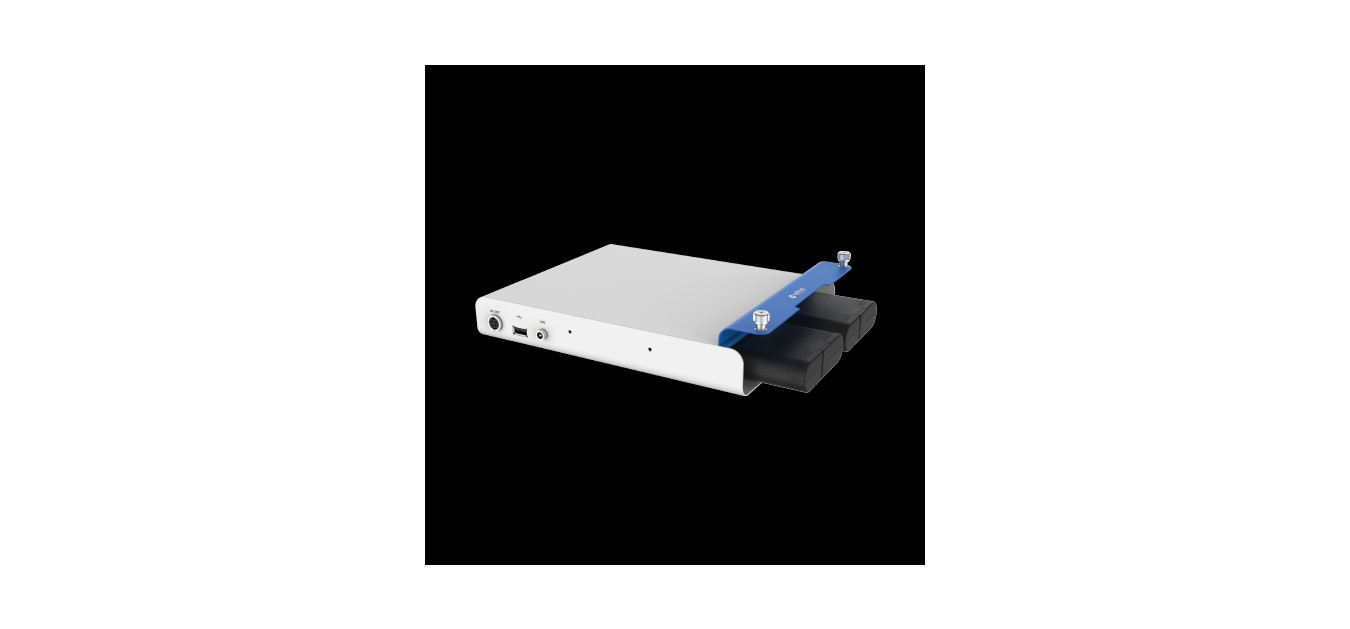

EPB-1001
Battery Expansion Power Bank

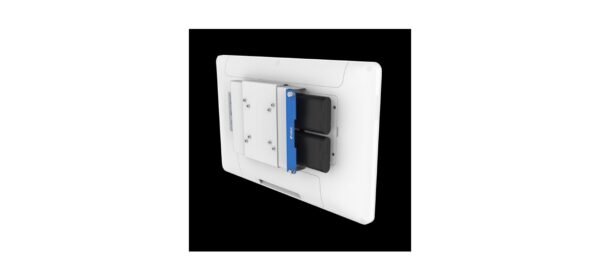

Easy installation at rear side of panel PC for mobile purpose or can be used as UPS solution.Support 6 to 12 hours operating depends on system power consumption.Compact Size to fit in most of main stream medical displays or panel PCs.Dual hot-swappable batteries.Optional VESA mounting bracket

Features

Easy installation at rear side of panel PC for mobile purpose or can be used as UPS solution.Support 6 to 12 hours operating depends on system power consumption.Compact Size to fit in most of main stream medical displays or panel PCs.Dual hot-swappable batteries.Optional VESA mounting bracket

Specifications

+ Spec
System Information
Platform Controller Hub LTC1760 Smart Charger IC LTC3789 Power IC
SBC EPB-1001 battery board
MCU IT8911
Battery Optional Dual Hot Swappable Smart Battery Pack
14.4V 6800mAh, 99.4Wh
External I/O
USB Port 1 x Type A
Power Output 12/19V DC-out 80W (By Jumper Setting. Default set as 19V) Optional Y-Cable available
System Control
LED Indicator Battery 1/ Battery 2 on the side
DC In / Out Connector
Input Power Connector DC Jack with Lock
Output Power Connector (DC-12V) 4P 90D(F)
DC In/Out Characteristics
Power Type 19V-24V
Output Voltage Range 14.4V Per Battery
Reliability
Operating Temperature 0~40°C (32°F ~ 104°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Storage Temperature -40°C ~ 75°C (-40 ~ 167°F) (without battery pack)
Certifications
Certification Information Battery Pack: UN38.3, UL2054, EN 62133-2:2017 (Battery body EN 62368-1)
EPB-1001: EN 60601-1
IEC60601-1 compliance
ISO 14971 (RMF)
EN 60601-1-2 4th (EMI ClassB)
FCC class part-15B (ITE)
Mechanical & Environmental
Weight 1.2kg
Vibration Test 1.5 Grms, IEC 60068-2-64
Shock Test 10g, Half Sine, IEC 60068-2-29
VESA Optional VESA Bracket Kit (75×75/ 100×100)
Dimensions(W x L x D) 235*182*36mm
Fanless Yes
Color White/ Blue
Black (optional)
Dust and Rain Test Top Side IPX1
+ Ordering
EPB-1001-891-A1R EPB-1001 Battery Expansion Box (Without Batteries)
RCC-EPB-VESA-01R EPB-1001 VESA Bracket Kit
RCC-HID-BAT-01R HID-2334 Totex Hot Swappable Battery, Pack of 4
RCC-HID-BATCHR-01R 4 Bay Charging Station w/120W Power Adapter
E170U080090R External USB Cable 500mm
E170P060330R External Power Output Cable 450mm DC Plug with lock
E170P100110R External Power Output Y Cable DC Plug/ Power Din
E170P080290R External Power Output Y Cable DC Plug/ Lockable DC Plug
+ Download
Driver(1)
Manual(1)
Windows 10 64bit
No. Release Date Model Description
Download
1 2022-01-28 EPB-1001 BatteryManagement Tools
Device:Other
Download

Parts

EPB-1001

Dual Battery Medical Power Bank VESA Mount Dual Voltage
