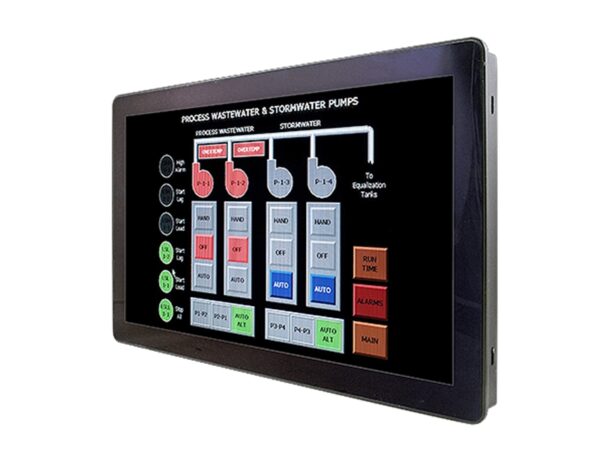

Avalue – ARC-15W33 15.6” WXGA LCD with PCAP Multi-Touch Fanless Panel PC Intel® Celeron® N3350/J3455 with IEn

Product Overview

The ARC series are suitable for using in diverse application scenarios, including industrial automation (e.g. HMI, heavy-industry manufacturing, non-stop production process and industrial automation), rehabilitation equipment (e.g. decompression machine, rehabilitation machine and training machine), and automated kiosks (e.g. automated vending machine, ATM, interactive kiosk and payment machine). The emphasis of Avalue’s ARC series design includes IP-65 rated water and dust resistance, wide operating temperature range, sunlight readable, support 5G and Wi-Fi 6 wireless transmission, and coating technology for PCAP touchscreen, making it the ideal solution for all applications whether indoor or outdoor.

Features

System Information

Processor Onboard Intel® Celeron® SoC BGA Processor
(Apollo Lake Platform N3350/J3455 CPU)

System Memory 1 x 204-pin DDR3L SODIMM Socket, Supports Up to 8GB DDR3L 1600Mhz SDRAM (Non-ECC)

Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step

H/W Status Monitor Monitoring CPU & System Temperature and Voltage

CPU Cooler (Type) Fanless Heatsink

Expansion

Expansion
1 x mSATA supports on the 1st Mini PCIe slot, Auto switch for mSATA or Mini PCIe
1 x 80-pin IET interface

Storage

Storage 1 x 2.5” Drive Bay(7mm HDD Restricted)

HDD/ SSD 1 x SATA3
Other Storage Device 1 x mSATA supports on the 1st Mini PCIe slot, Auto switch for mSATA or Mini PCIe
Panel
LCD Size 15.6″, 16:9
Display Type WXGA
B/L Inverter/Converter LCD built in
Resolution 1366 x 768
Pixel pitch 0.252mm(H) x 0.252mm(V)
Luminance 300 cd/m²
Contrast ratio 500
Viewing angle 80 (U), 80 (D), 80 (L), 80 (R)
Response time 8 ms
Backlight LED
Touch Type Projective Capacitive Multi-Touch supports up to 10 points
Touch Light Transmission 88 %
Touch Controller EETI

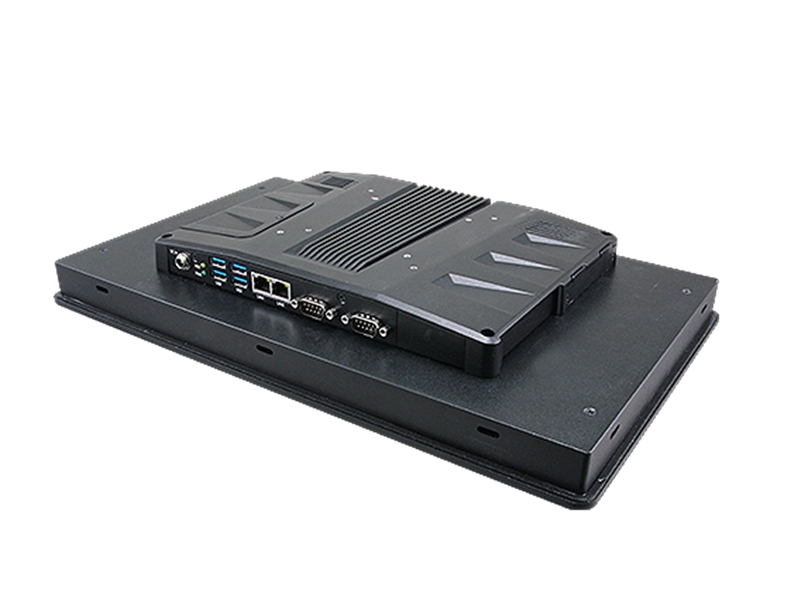

I/O
USB Port 4 x USB3.0 (2 x Double deck)
COM Port 1 x RS-232/422/485, selectable by BIOS, RS-485 supports Auto Flow, Pin-9 selected by Ring/+5V/+12V)
1 x RS-232
DIO 16-bit GPIO
Expansion 1 x mSATA supports on the 1st Mini PCIe slot, Auto switch for mSATA or Mini PCIe
1 x Optional by IET module
Other 3 x Knockouts for Antenna Mounting
System Control
LED Indicator HDD LED, Power LED
DC In/Out Characteristics
Power Type AT/ATX
Audio
Audio Codec Realtek ALC888S
Audio Interface speaker out
Speaker Output 2 x 2W
Certifications
Certification Information CE / FCC Class B
Ethernet
LAN Port 2 x Intel I211AT for APL-M
Power Requirement
DC Input DC +9V ~ +36V, wide voltage single power input
TVS component for surge protection
Reverse current/voltage protection
DC Input Connector Lockable DC Jack (Default)
optional for phoenix connector
ACPI Single power ATX Support S0, S3, S4, S5 and ACPI 3.0 Compliant
Power Mode AT/ATX
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter
Mechanical & Environmental
Operating Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Dimension (W x L x H) 391.2 x 239.2 x 57.5 mm
Weight 3.7Kgs
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
Shock Test Operating with SSD/CFast/mSATA : MIL-STD-810G, Method 516.6, Procedure I, functional shock=20G
IP Rating Front Panel IP65
back cover IP41
Mounting Kit Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Panel Mount with mounting kits
Power Requirement DC +9V ~ +36V, wide voltage single power input
TVS component for surge protection
Reverse current/voltage protection
Power Mode AT/ATX (ATX is default setting)
System Fan Fanless
Construction – Front Die Casting with Cover lens
Construction – Rear Black Die Casting
Relative Humidity 0~90% Relative Humidity, Non-condensing
Fanless Yes
Drop ISTA 2A, IEC-60068-2-32 Test:Ed
Software Support
OS Information Linux, Windows 10
Ordering Information
Ordering Information ARC-15W33-335-B3R
15.6″ 1366×768 Industrial Touch Panel PC, ErP Design, PCAP Multi Touch (F1 Stepping CPU)
Intel Celeron SoC N3350 1.10GHz CPU/2GLAN/2COM/4USB/SPK/9~36V input/12V Adapter

ARC-15W33-345-B3R
15.6″ 1366×768 Industrial Touch Panel PC, ErP Design, PCAP Multi Touch (F1 Stepping CPU)
Intel Celeron SoC J3455 1.50GHz CPU/2GLAN/2COM/4USB/SPK/9~36V input/12V Adapter

ACC-ARC-USB-1R
4 x USB 3.0 Kit for ARC Series

ACC-ARC-AUDIO-1R
HDMI + 5.1 CH Audio Kit for ARC Series

ACC-ARC-MPCIE-1R
HDMI + MPCIE w/SIM Kit for ARC Series

ACC-ARC-COM-1R
2 x Isolated RS-232 Kit for ARC Series

ACC-ARC-COM-2R
3 x RS-232 Kit for ARC Series

ACC-ARC-COM-3R
2 x RS-232 + USB Kit for ARC Series

ACC-ARC-COM-4R
2 x RS-232 + LAN Kit for ARC Series

ACC-ARC-GPIO-1R
12-bit GPIO + 2-pin CAN Bus Kit for ARC Series

ACC-ARC-OBDII-1R
OBDII – CAN Bus Kit for ARC Series (OBDII/EOBD for Small Vehicle)

ACC-ARC-OBDII-2R
OBDII – CAN Bus Kit for ARC Series (J1939J1708 for Large Vehicle)

ACC-ARC-OBDII-3R
OBDII – CAN Bus Kit for ARC Series (ISO15765-4 for Special Large Vehicle)

Parts

ARC-15W33-335-B2R

15" Wide PCAP Panel Mount PC 2GB 32GB SSD N3350
