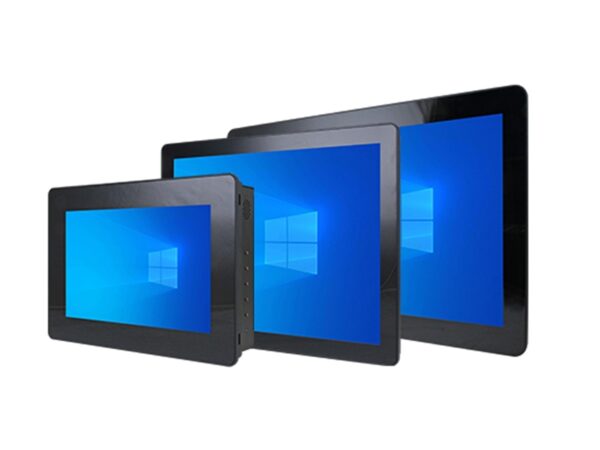

Designed for industrial applications such as factory automation interfaces, the Avalue ARC series rugged touch monitors feature die casting front bezels and PCAP coating technology enabling them to withstand harsh operating environments, while also being suitable for work, outdoor or public use-cases such as digital signage, transportation, vending machines, kiosks, ATMs, intercoms and much more
Features
– 10.1 ~ 21.5″ Screen Size(s)
– HDMI, VGA, Display Port
– Vibration & Shock Protection
– IP65 Compliant Front Panel
– Option for Bi-Direction WIFI-6
– Wide Operating Temperature
Specs
Display Size
10.1″ (16:10) – ARC-10W00.
12.1″ (16:10) – ARC-1200.
15″ (16:10) – ARC-1500.
15.6″ (16:10) – ARC-15W00.
17″ (16:10) – ARC-1700.
21.5″ (16:10) – ARC-21W00.
Resolution
WXGA (1280 x 800) – Ā ARC-10W00.
12.1″ (16:10) – Ā ARC-1200.
15″ (16:10) – ARC-1500.
15.6″ (16:10) – ARC-15W00.
17″ (16:10) – ARC-1700.
21.5″ (16:10) – ARC-21W00.
Pixel Pitch
(H) 0.1695mmĀ x (V) 0.1695mm – Ā ARC-10W00.
(H) 0.240mm x (V) 0.240mm – Ā ARC-1200.
(H) 0.297mm x (V) 0.297mm – ARC-1500.
(H) 0.252mm x (V) 0.252mm – Ā ARC-15W00.
(H) 0.264mm x (V) 0.264mm – ARC-1700.
(H) 0.24795mm x (V) 0.24795mm – ARC-21W00.
Luminance
350 cd/m2 – ARC-10W00.
600 cd/mĀ² – ARC-1200.
300 cd/mĀ² – ARC-1500.
300 cd/mĀ² – ARC-15W00.
350 cd/mĀ² – ARC-1700.
250 cd/mĀ² – ARC-21W00.
Contrast ratio
800 – ARC-10W00.
1000Ā – ARC-1200.
2000 – ARC-1500.
500 – ARC-15W00.
800 – ARC-1700.
250 cd/mĀ² – ARC-21W00.

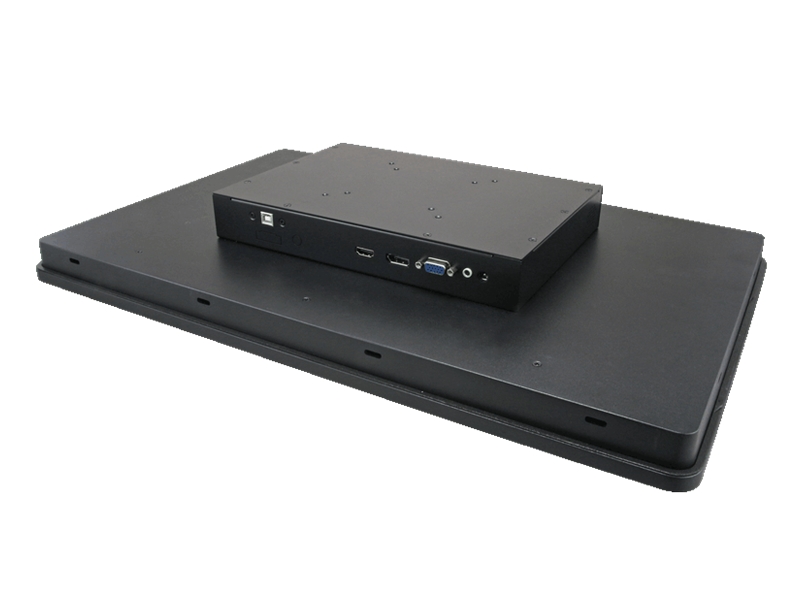

I/O Interface
USB Type B connector for touch function
1 x HDMI 1.4a (HDCP 1.3).
1 x Display Port 1.2 (HDCP 1.3).
1 x 15 PIN D-SUB VGA connector Other OSD key at rear cover.
Expansion
Option for Bi-Direction WIFI-6 Interactive Module for USB Signal and Image.
Audio
1 x Line in.
2 x 5WĀ Speaker Output.
Power
Input:
100 ~ 240Vac/ 50 ~ 60Hz.
Output:
60W Adapter (12V @ 5A Adapter) AC-DC Adapter.
+12V DC in by DC Jack.
Optional:Ā +9~36V DC in by phoenix connector.
Operating Temperature
10Ā°C ~ 50Ā°C – ARC-10W00.
-10Ā°C ~ 50Ā°C (Option for -20Ā°C ~ 70Ā°C) – ARC-1200.
-10Ā°C ~ 50Ā°C (Option for -20Ā°C ~ 70Ā°C) – ARC-1500.
-10Ā°C ~ 50Ā°C (Option for -10Ā°C ~ 60Ā°C) – ARC-15W00.
10Ā°C ~ 50Ā°C (Option for -20Ā°C ~ 70Ā°C) – ARC-1700.
10Ā°C ~ 50Ā°C – ARC-21W00.
Storage Temperature
20Ā°C ~ 60Ā°C – ARC-10W00.
20Ā°C ~ 70Ā°C – ARC-1200.
20Ā°C ~ 70Ā°C – ARC-1500.
-20Ā°C ~ 60Ā°C – ARC-15W00.
-20Ā°C ~ 70Ā°C – ARC-1700.
20Ā°C ~ 60Ā°C – ARC-21W00.
Shock
MIL-STD-810G, Method 516.6, Procedure I, functional shock=20G.
Vibration
1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis.
IP Rating
Front Panel IP65.
Dimensions (W x L x D)
282.3 x 201 x 61.4 mm – ARC-10W00.
293.77 x 226.3 x 61.5 mm – ARC-1200.
350 x 274.5 x 63.5 mm – ARC-1500.
391.21 x 239.21 x 68 mm – ARC-15W00.
392.72 x 325.32 x 70.25 mm –Ā ARC-1700.
538.05 x 341.05 x 71 mm –Ā ARC-21W00.
Weight
2 kgĀ –Ā ARC-10W00.
2.5 kg –Ā ARC-1200.
3.7 kg –Ā ARC-1500.
3.2 kg –Ā ARC-15W00.
4.6 kg –Ā ARC-1700.
5.9 kg –Ā ARC-21W00.
Mounting
Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm.
Default with Panel Mount kits.
Certification
CE/FCC Class A.
OS Support
WindowsĀ© 10.
Linux.
