Avalue – Apollo Lake SLim Format System

Product Overview

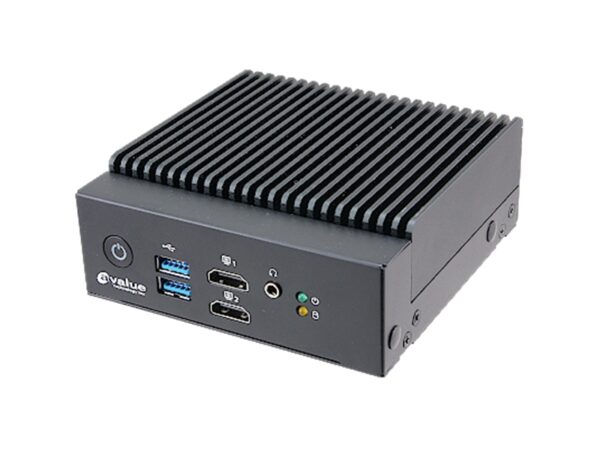

NUC-APL-Slim

Intel® Apollo Lake Fanless NUC Slim System

Features

– Onboard Intel® Celeron® Processor J3455/N3350
– Single DRAM Socket, Max. Up to 8GB DDR3 1866MHz

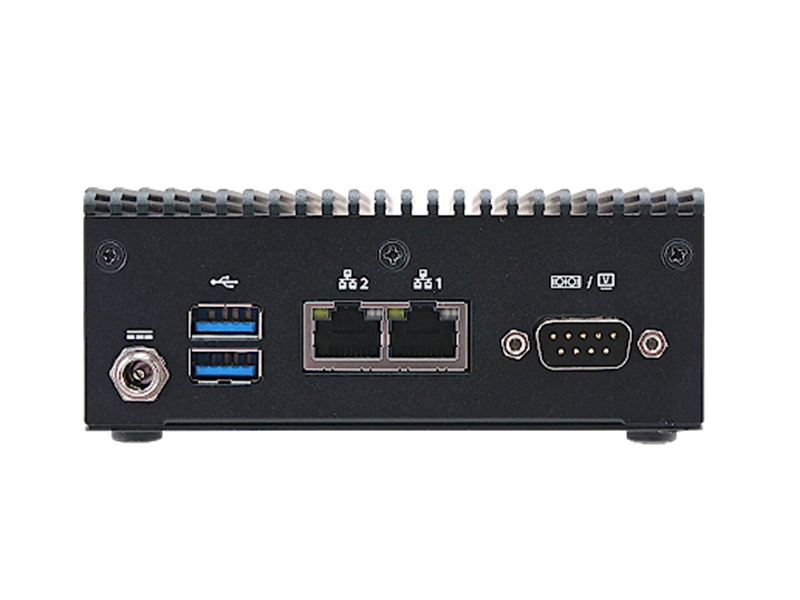

– Rich I/O, 1 x COM, 2 x HDMI, 2 x LAN, 4 x USB3.0, 1 x Audio, 2 x Antennal Mounting
– Expansion Slot, M.2 Key-B, M.2 Key-E
– Fanless Operating from 0°C ~ 50°C
– DC Power Input +12V
– Compact Size, 115mm x 111mm x 45mm
– Supports VESA/Din-Rail Kit
– TPM 2.0 (Factory Option)

Specifications

System Information
Processor- Intel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz)
Intel® Celeron® Processor N3350 (2M Cache, up to 2.4 GHz)
System Memory- 1 x 204-pin SO-DIMM Socket, Max, Up to 8GB DDR3L 1866MHz
BIOS Information- AMI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer- H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
H/W Status Monitor- Monitoring CPU Temperature, Voltage with Auto Throttling Control
SBC- NCM-APL

Expansion
Expansion- 1 x M.2 (Key-B, 2242/3042, PCIe, SATA, USB 3.0, USB 2.0)
1 x M.2 (Key-E, 2230, PCIe, USB2.0)

Storage
Storage- 1 x M.2 (Key-B,2242, SATA)

I/O
USB Port- 4 x USB 3.0 (5Gbps)
COM Port- 1 x RS-232/422/485 (BIOS&Cable)
Antenna- 2 x Antenna Mounting with Dust Cover

System Control
LED Indicator 1 x Power on/off LED & Storage Access LED on front side

Display
Graphic Chipset- Intel® HD Graphics 500
Spec. & Resolution- 2 x HDMI 1.4b: Max. Resolution 3840×2160@30Hz
*1 x DP/DVI-I/VGA (Factory Option): Max. Resolution 1920 x 1080@60Hz
*DP/DVI-I/VGA is an option which will replace the location of COM.
Multiple Display- Dual Display

Audio
Audio Codec- Realtek ALC888S
Audio Interface- 1 x Audio Jack (Mic-in + Line-Out Combo)

Certifications
Certification Information- CE, FCC Class A

Ethernet
LAN Chipset- Realtek RTL8111E Gigabit Ethernet
Ethernet Interface- 10/100/1000 Base-Tx Gigabit Ethernet Compatible
LAN Port- 2 x RJ45

Power Requirement
DC Input- +12V
DC Input Connector- Lockable DC Jack
ACPI- Single Power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant
Power Mode- AT/ATX (ATX is default setting)
Adapter- Input: 100 ~ 240Vdc/ 50 ~ 60Hz
Output: 12V/5A AC-DC 60W Adapter

Mechanical & Environmental
Operating Temperature- -10°C ~ 40°C (14°F ~ 104°F) with 0.2m/s air flow
-10°C ~ 50°C (14°F ~ 122°F) with 0.5m/s air flow
Storage Temperature- -30~70C° (-22°F ~ 158°F)
Operating Humidity- 40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)- 115mm x 111mm x 45mm (4.53″ x 4,37″ x 1.77″)
Weight- 0.72KG (1.59lbs)
Vibration Test- With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis
Shock Test- With SDD : 55G, IEC 60068-2-27, Half Sine, 11ms, Z Axis
Mounting Kit- VESA/Din Rail Kit
Drop- ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces
Construction- Aluminum + Metal

Software Support
OS Information- Win 10, Linux

Ordering Information
Ordering Information- NUC-APL-34-B1-2R
Intel® Celeron® Processor J3455 Fanless NUC Slim System

NUC-APL-33-B1-2R
Intel® Celeron® Processor N3350 Fanless NUC Slim System

Parts

NUC-APL-SLIM

Apollo Lake Fanless NUC System Celeron J3455 N3350 115mm x 111mm x 45mm
