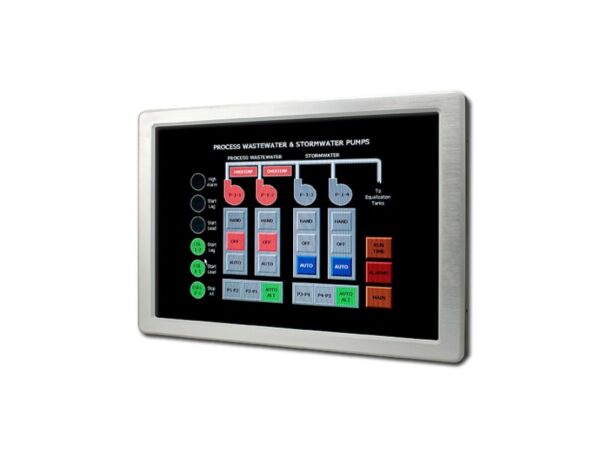

Avalue – 17″ IP Rated Rugged Panel PC

Product Overview

ntel® Atom™ E3845 1.91GHz CPUOne 204-pin DDR3L SODIMM Socket Supports Up to 8GB DDR3L 1333 SDRAM1 CF, 2 USB, 1 COMDual Intel I210IT Gigabit LANWide Voltage +12V ~ +26V Input, ErP PowerBacklight Controlled by PWMIP65 Compliant Front PanelTimer-Power-On

Features

Spec
System Information
Processor Intel® Atom™ E3845 4-Core 1.91GHz processor
System Memory 1 x 204-Pin DDR3L 1333MHz SO-DIMM up to 8 GB
I/O Chipset EC ITE IT8528E
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step
H/W Status Monitor Monitoring CPU & System Temperature and Voltage
SBC EBM-BYT
Expansion
Expansion 1 x Mini PCIe Support mSATA
1 x Mini PCIe Supports SIM Card
Storage
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5″ Drive Bay
Panel
LCD Size 17″, 4:3
Display Type SXGA
Resolution 1280×1024
Pixel pitch 0.264mm(H) x 0.264mm(V)
Luminance 350 cd/m2
Contrast ratio 800
Viewing angle 80 (U), 80 (D), 85 (L), 85 (R)
Response time 30 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light Transmission 80%
Touch Controller Onboard USB touch (EETI)
I/O
USB Port 1 x USB 3.0
1 x USB 2.0
COM Port 1 x RS-232/422/485 (BIOS)
SATA 1 x SATA II
Other 1 x HDMI
1 x Knockouts for Antenna Mounting
Display
Graphic Chipset Intel® Valleyview SoC integrated Graphics
Supports dual display
Spec. & Resolution HDMI:Max. resolution 1920×1200@ 60Hz
Audio
Audio Codec Realtek ALC888S
Audio Interface Line-Out
Speaker Output 2 x 1W
Certifications
Certification Information CE / FCC Class B
Ethernet
LAN Chipset 2 x Intel® I210IT
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Power Requirement
DC Input +12V ~ +26V
DC Input Connector Lockable DC Jack
Power Mode AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter)
Mechanical & Environmental
Operating Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Storage Temperature -30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Dimension (W x L x H) 382 x 320 x 58.8 mm
Weight 5 Kgs
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
System Fan Fanless
Construction – Front Silver Aluminum
Construction – Rear Black
Software Support
OS Information Win 7
Win 8
Linux
Ordering Information
Ordering Information LPC-1709-384-A4R
Intel Atom E3845 1.91GHz CPU/ 4G DDR3L/2GLAN/COM/SPK/12~26V input/12V Adaptor

LPC-1709-WMB-A4R
Intel Atom E3845 1.91GHz CPU/ 4G DDR3L/2GLAN/COM/SPK/ Back Panel Mount/ 12~26V input/12V Adaptor

ACC-LPC-WIFI-01R
MPCIE WIFI-Kit for LPC Series(half-card) Antenna/Cable/BT4.0/802.11a/b/g/n/ac

ACC-ARM-D1R
VESA STAND, 75mm & 100 mm

ACC-ARM-D19R
VESA STAND, 75mm & 100 mm

ACC-LPC-17-PMT-01R
Front Panel Mount Kit for LPC-17 Series, w/o IP-65

ACC-LPC-17-PMT-02R
Back Panel Mount Kit for LPC-17 Series, w/IP-65

Parts

LPC-1709(STD)

17" Rugged Fanless Panel PC Intel® Atom™ SoC Processor E38
