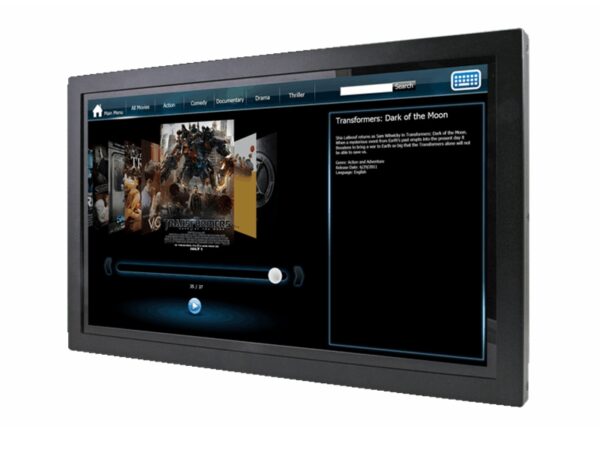

Avalue – 15.6″ 1920 X 1080 PCAP Multi Touch Panel PC Windows / Linux / Android

Product Overview

15.6” TFT-LCD, WXGA, 1920 x 1080Projective Capacitive Multi-TouchIP65 Front PanelIntel Atom Z8350F 1.44GHz Processor2GB/4GB DDR3L Memory on board32GB/64GB eMMC on board10/100Mbps Fast EthernetWiFi IEEE802.11 ac/b/g/n on boardWide range DC 12~24V DC inputWindows 10 or Linux supported


System Information
Processor Intel Atom x5-8350 Quad Core CPU 1.44 GHz, up to 1.92 GHz
System Memory 2GB/4GB DDR3L on board

Storage 32GB/64GB eMMC on board

External I/O
USB Port 1 x USB 3.0, 2 x USB 2.0
Video Port 1 x HDMI 1.4 output
Audio Port 1 x Line out
LAN Port 1 x Fast Ethernet(10/100Mbps)
Wireless LAN Antenna 1 x SMA type connector

LCD Size 15.6″
Display Type FHD
Resolution 1920×1080
Pixel pitch 0.1792 x 0.1792mm
Luminance 220 cd/m2(typ)
Contrast ratio 800
Viewing angle 89 (U), 89 (D), 89 (L), 89 ( R)
Response time 7ms
Backlight LED
Touch Type Projective Capacitive
Touch Light Transmission 86%

Data Communication
WLAN 802.11 ac/b/g/n
Bluetooth Bluetooth 5.0

Certification Information CE/FCC Part 15, Subpart B

Power Requirement
DC Input DC 12~24V Input
Power Mode AT mode(Default)
Adapter Input: 100~240 Vac/50~60 Hz, Output: 60W Adapter (12V @ 5A Adapter)

Mechanical & Environmental
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Weight 3.7kg
IP Rating Front IP65
Mounting Kit 100 x 100mm
Dimensions(W x L x D) 391.2 x 239.2 x 48.1mm
Power Requirement 12-24V DC Input
Construction Metal
Software Support
OS Information Windows 10 2019 / Linux(TBA)
