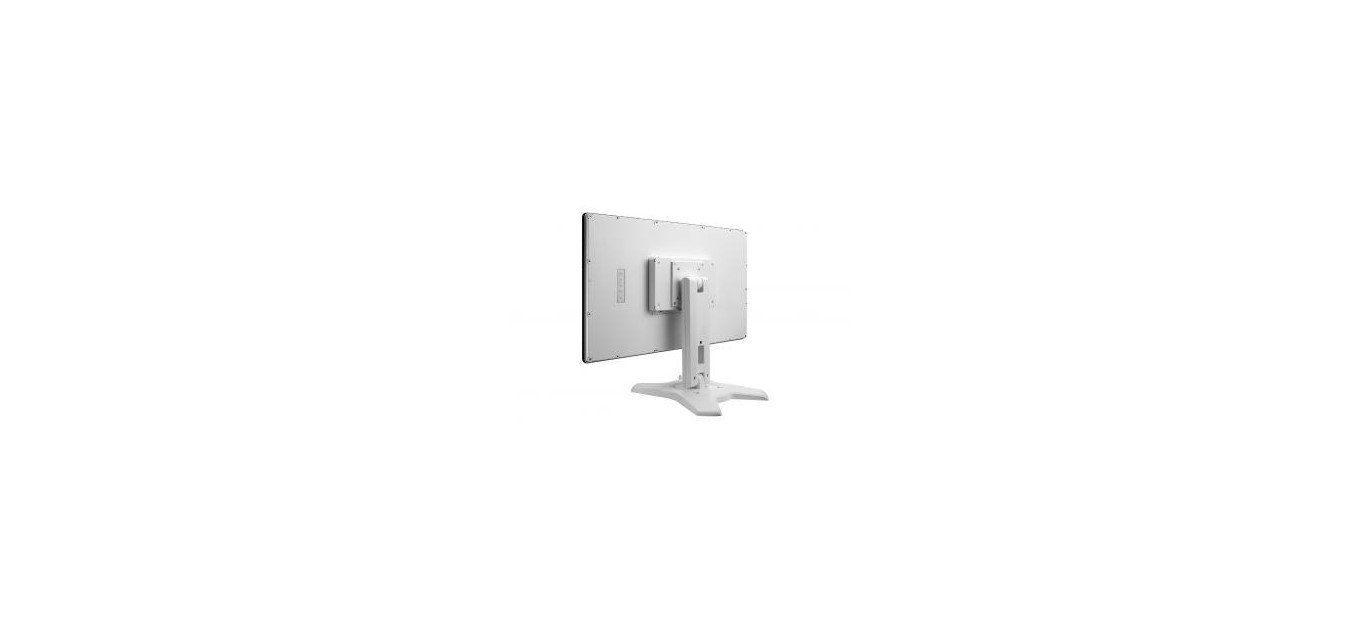

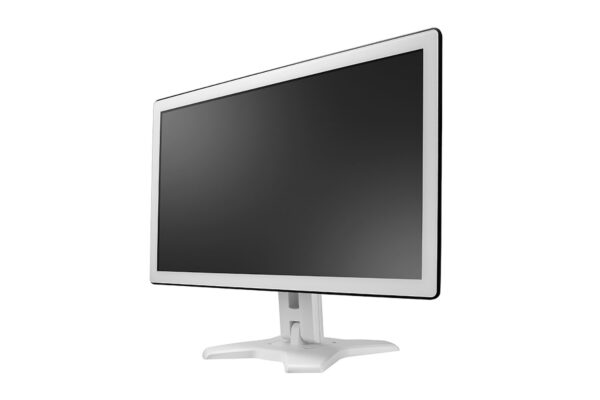

AG Neovo – TX-2401 Medical Grade PCAP Touchscreen Monitor IEC/EN60601-1N Certified IP65

Product Overview

Panel Panel Type: LED-Backlit TFT LCD (VA Technology)
Panel Size: 23.8
Max. Resolution: FHD 1920 x 1080
Pixel Pitch: 0.274 mm
Brightness: 250 cd/m²
Contrast Ratio: 3000:1
Viewing Angle (H/V): 178°/178°
Display Colour: 16.7M
Response Time: 5 ms
Surface Treatment: Seriesant1-Glare Treatment (Haze 40%),3H Hard Coating
Frequency Frequency (H): 30 kHz-84 kHz
Frequency (V): 56 Hz-76 Hz
Signal Input DisplayPort: 1.2a x 1
HDMI: 1.3 x 1
VGA: 15-Pin D-Sub x 1
Audio Audio Out: Stereo Audio Jack (3.5 mm)
Touch Screen Technology: Projective Capacitive
Positional Accuracy: ±2.5 mm
Panel Interface: USB (Type-B) / Service Port
Multi-touch Plug & Play: 10-point touch for Windows® 7?8?10
Single Touch Support by Driver: Windows VISTA/XP/2000/CE/XP Embedded?Mac OS 10.10-10.14
Multi-touch Support by Driver: Linux 2.6.36 later/3.x.x/4.x.x/5.x.x?Android 2.3 upwards
Power Power Requirements: DC 12V, 2.5A
On Mode: 17 W (On)
Standby Mode: < 0.4W Off Mode: < 0.2W Glass Thickness: 3.3 mm (0.13") Transmission Rate: =85% Hardness: =7H Operating Conditions Temperature: 0°C-40°C (32°F-104°F) Humidity: 20%-80% (non-condensing) Mounting VESA FPMPMI: Yes (100 x 100 mm) Dimensions Product with Base (W x H x D): 575.1 x 451.3 x 279.7 mm (22.6" x 17.8" x 11.0") Product w/o Base (W x H x D): 575.1 x 347.0 x42.4 mm (22.6" x 13.7" x 1.7") Packaging (W x H x D): 370.0 x 530.0 x 660.0 mm (14.6" x 20.9" x26.0") Weight Product w/o Base: 5.7 kg (12.6 lb) Product with Base: 7.8 kg (17.2 lb) Packaging: 11.4 kg (25.1 lb) Regulation Approval Certifications & Compliance: CE, LVD, WEEE, RoHS, REACH, EAC, UKCA Accessories Supplied: Power Adaptor, Power Cord, VGA Cable, HDMI Cable, USB Cable, Quick Start Guide, Warranty Card Optional Accessories Wall Mount (Landscape only): WMK-01, WMK-03, PMK-01 Power Power Supply: External Storage Conditions Temperature: -20°C-60°C (-4°F-140°F) Humidity: 10%-90% (non-condensing)



24" Medical Grade Touch Screen Monitor IP65 IEC/EN60601-1

Enquire for availability
