Product Overview
Panel Panel Type: LED-Backlit TFT LCD (VA Technology)
Panel Size: 27.0″
Max. Resolution: FHD 1920 x 1080
Pixel Pitch: 0.311 mm
Brightness: 300 cd/m²
180 cd/m² (DICOM Preset)
Contrast Ratio: 20,000,000:1 (DCR)
Viewing Angle (H/V): 178°/178°
Display Colour: 16.7M
Response Time: 5 ms
Frequency Frequency (H): 30 kHz-83 kHz
Frequency (V): 50 Hz-76 Hz

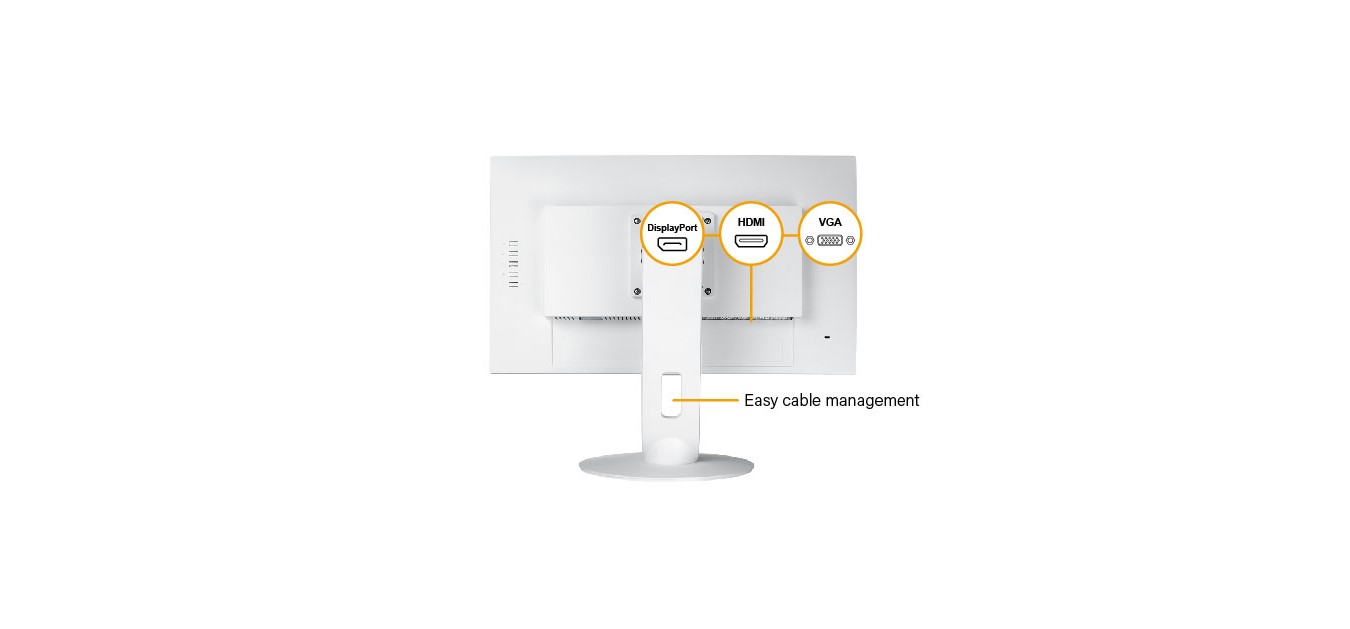

Signal Input DisplayPort: x 1
HDMI: 1.4 x 1
VGA: 15-Pin D-Sub x 1
Power Power Requirements: DC 12V, 2.5A
On Mode: 16W (On)
Standby Mode: < 0.3W
Off Mode: < 0.2W
Operating Conditions Temperature: 0°C-40°C (32°F-104°F)
Humidity: 10%-85% (non-condensing)
Mounting VESA FPMPMI: Yes (100 x 100 mm)
Stand Tilt: -5° to 23°
Pivot: -2.5° to 92.5°
Swivel: ± 65°
Height Adjustment: 0-110 mm
Security Kensington Security Slot: Yes
Dimensions Product with Base (W x H x D): 612.6 x 519.8 x 249.0 mm (24.1" x 20.5" x 9.8")
Product w/o Base (W x H x D): 612.6 x 367.1 x 50.4 mm (24.1" x 14.6" x 2.0")
Packaging (W x H x D): 700.0 x 456.0 x 282.0 mm (27.6" x 18.0" x 11.1")
Weight Product w/o Base: 3.7 kg (8.2 lb)
Product with Base: 6.1 kg (14.5 lb)
Packaging: 8.8 kg (19.4 lb)
Regulation Approval Certifications & Compliance: CE, LVD, WEEE, RoHS, REACH, EAC, UKCA, BSMI
Accessories Supplied: Power Adaptor, Power Cord, HDMI Cable, Quick Start Guide, Warranty Card
Optional Accessories Ceiling Mount (Landscape only): CMP-01+WMK-03
Wall Mount (Landscape only): WMA-01, WMK-01, WMK-03, PMK-01
Desk mount (Landscape only): DMC-01, ES-02
Power Power Supply: External
Storage Conditions Temperature: -25°C-55°C (-13°F-131°F)
Humidity: 5%-93% (non-condensing)
