Low Voltage DC (<120V)
Durakool fully sealed Industrial low voltage DC Contactors deliver reliable switching for industrial LVDC applications up to 120V and 2000A. Engineered with IP67 sealing for harsh environments, they feature advanced latching technology for energy efficiency and multiple contact configurations to suit exact design requirements. UL approvals ensure compliance, while optional auxiliary contacts provide added flexibility.
Ready to make optimal your design with our industrial LVDC Contactors? Contact us today to discuss your application.
| Features |  |  |  |  |  |
|---|---|---|---|---|---|
| Series | DLVC400 | DLVC400 | DSC08 | DSC08 | DSC10 |

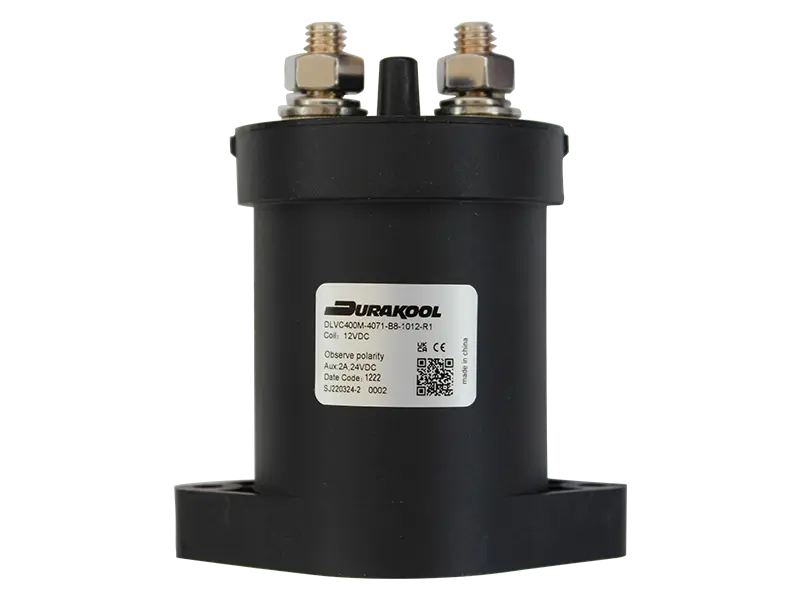

| Description | Industrial LVDC 400A 80VDC, or 400A 120VDC with magnetic arc blowout and a max. breaking current of 4000A (one time only). AgCu10 contacts sealed in inert gas. Male or female power terminals. IPS67 fully sealed. Auxiliary contact option. Side or bottom mounting.” | Industrial LVDC 400A 80VDC, or 400A 120VDC with magnetic arc blowout and a max. breaking current of 4000A (one time only). AgCu10 contacts sealed in inert gas. Male or female power terminals. IPS67 fully sealed. Auxiliary contact option. Side or bottom mounting.” | An Industrial LVDC contactor with a rated load of 80A at 60VDC. Optional magnetic arc blow out, auxiliary contact and bi-stable latching. Male or female power terminals. | An Industrial LVDC contactor with a rated load of 80A at 60VDC. Optional magnetic arc blow out, auxiliary contact and bi-stable latching. Male or female power terminals. | An Industrial LVDC contactor with a rated load of 100A at 60VDC. Optional magnetic arc blow out, auxiliary contact and bi-stable latching. Male or female power terminals. UL Recognised. |
| Supplier | Durakool | Durakool | Durakool | Durakool | Durakool |
| Dimensions (L x W x H) mm | 59.6 x 58.2 x 93.8 | 59.6 x 58.2 x 93.8 | 36.9 x 32.8 x 84.2 | 36.9 x 32.8 x 84.2 | 36.9 x 32.8 x 84.2 |
| Contact Configuration | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM |
| Max. Switching Voltage | 120VDC | 120VDC | 60VDC, 120VDC (with magnetic blowout) | 60VDC, 120VDC (with magnetic blowout) | 60VDC, 120VDC (with magnetic blowout) |
| Rated Current | 400A @ 80VDC or 400A @ 120VDC | 400A @ 80VDC or 400A @ 120VDC | 80A | 80A | 100A |
| Contact Material | Oxygen Free Cu (Cu. C10200) | Oxygen Free Cu (Cu. C10200) | AgCu Alloy | AgCu Alloy | AgCu Alloy |
| Coil Voltages | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC |
| Datasheet | Download | Download | Download | Download | Download |
| Enquire | Enquire | Enquire | Enquire | Enquire | Enquire |
| Features |  |  |  |  |  |
| Series | DSC10 | DSC12 | DSC12 | DSC15 | DSC15 |
| Description | An Industrial LVDC contactor with a rated load of 100A at 60VDC. Optional magnetic arc blow out, auxiliary contact and bi-stable latching. Male or female power terminals. UL Recognised. | An Industrial LVDC contactor with a rated load of 125A 60VDC. SPST, SPDT and DPST-NO versions. Optional magnetic arc blowout, auxiliary contact. Bi-stable latching is an option on SPST version only. Used in motor reversers. UL Recognised. | An Industrial LVDC contactor with a rated load of 125A 60VDC. SPST, SPDT and DPST-NO versions. Optional magnetic arc blowout, auxiliary contact. Bi-stable latching is an option on SPST version only. Used in motor reversers. UL Recognised. | An Industrial LVDC contactor with a rated load of 150A 60VDC. SPST-NO with optional magnetic arc blowout, auxiliary contact. Bi-stable latching is also an option. UL Recognised. | An Industrial LVDC contactor with a rated load of 150A 60VDC. SPST-NO with optional magnetic arc blowout, auxiliary contact. Bi-stable latching is also an option. UL Recognised. |
| Supplier | Durakool | Durakool | Durakool | Durakool | Durakool |
| Dimensions (L x W x H) mm | 36.9 x 32.8 x 84.2 | various | various | 50 x 39 x 96 (max.) | 50 x 39 x 96 (max.) |
| Contact Configuration | SPST-NO-DM | SPST-NO-DM, SPDT, DPST-NO-DM, DPDT | SPST-NO-DM, SPDT, DPST-NO-DM, DPDT | SPST-NO-DM | SPST-NO-DM |
| Max. Switching Voltage | 60VDC, 120VDC (with magnetic blowout) | 60VDC, 120VDC (with magnetic blowout) | 60VDC, 120VDC (with magnetic blowout) | 60VDC, 120VDC (with magnetic blowout) | 60VDC, 120VDC (with magnetic blowout) |
| Rated Current | 100A | 125A | 125A | 150A | 150A |
| Contact Material | AgCu Alloy | AgCu Alloy | AgCu Alloy | AgCu Alloy | AgCu Alloy |
| Coil Voltages | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC |
| Datasheet | Download | Download | Download | Download | Download |
| Enquire | Enquire | Enquire | Enquire | Enquire | Enquire |
| Features |  |  |  |  |  |
| Series | DSC20 | DSC20 | DSC25 | DSC25 | DSC30 |
| Description | An Industrial LVDC contactor with a rated load of 200A 60VDC. SPST, SPDT, DPDT and DPST-NO versions. Optional magnet arc blowout, auxiliary contact. Bi-stable latching is an option on SPST version only. Used in motor reversers. UL Recognised. | An Industrial LVDC contactor with a rated load of 200A 60VDC. SPST, SPDT, DPDT and DPST-NO versions. Optional magnet arc blowout, auxiliary contact. Bi-stable latching is an option on SPST version only. Used in motor reversers. UL Recognised. | An Industrial LVDC contactor with a rated load of 250A 60VDC. SPST-NO with optional magnetic arc blowout, auxiliary contact. Bi-stable latching is also an option. Busbar power terminals. UL Recognised. | An Industrial LVDC contactor with a rated load of 250A 60VDC. SPST-NO with optional magnetic arc blowout, auxiliary contact. Bi-stable latching is also an option. Busbar power terminals. UL Recognised. | An Industrial LVDC contactor with a rated load of 300A 60VDC. SPST-NO with optional auxiliary contact. Bi-stable latching is also an option. Busbar power terminals. UL Recognised. |
| Supplier | Durakool | Durakool | Durakool | Durakool | Durakool |
| Dimensions (L x W x H) mm | various | various | 49 x 52 x 80 (excluding busbars) | 49 x 52 x 80 (excluding busbars) | 57.5 x 64.8 x 103 (excluding busbars) |
| Contact Configuration | SPST-NO-DM, SPDT, DPST-NO-DM, DPDT | SPST-NO-DM, SPDT, DPST-NO-DM, DPDT | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM |
| Max. Switching Voltage | 60VDC, 120VDC (with magnetic blowout) | 60VDC, 120VDC (with magnetic blowout) | 60VDC, 120VDC (with magnetic blowout) | 60VDC, 120VDC (with magnetic blowout) | 60VDC |
| Rated Current | 200A | 200A | 250A | 250A | 300A |
| Contact Material | AgCu Alloy | AgCu Alloy | AgCu Alloy | AgCu Alloy | AgCu Alloy |
| Coil Voltages | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC | 12V, 24V, 48V, 60VDC |
| Datasheet | Download | Download | Download | Download | Download |
| Enquire | Enquire | Enquire | Enquire | Enquire | Enquire |
| Features |  |  |  |  |  |
| Series | DSC30 | DSC30M | DSC30M | DSC40 | DSC40 |
| Description | An Industrial LVDC contactor with a rated load of 300A 60VDC. SPST-NO with optional auxiliary contact. Bi-stable latching is also an option. Busbar power terminals. UL Recognised. | An Industrial LVDC contactor with a rated load of 300A 120VDC. SPST-NO with optional magnet arc blowout, auxiliary contact. Bi-stable latching is also an option. Power stud terminals. UL Recognised. | An Industrial LVDC contactor with a rated load of 300A 120VDC. SPST-NO with optional magnet arc blowout, auxiliary contact. Bi-stable latching is also an option. Power stud terminals. UL Recognised. | An Industrial LVDC contactor with a rated load of 400A 60VDC. SPST, SPDT, DPDT and DPST-NO versions. Optional magnetic arc blowout, auxiliary contact. Bi-stable latching is an option on SPST version only. Used in motor reversers. UL Recognised. | An Industrial LVDC contactor with a rated load of 400A 60VDC. SPST, SPDT, DPDT and DPST-NO versions. Optional magnetic arc blowout, auxiliary contact. Bi-stable latching is an option on SPST version only. Used in motor reversers. UL Recognised. |
| Supplier | Durakool | Durakool | Durakool | Durakool | Durakool |
| Dimensions (L x W x H) mm | 57.5 x 64.8 x 103 (excluding busbars) | 57.5 x 64.8 x 103 | 57.5 x 64.8 x 103 | various | various |
| Contact Configuration | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM, SPDT, DPST-NO-DM, DPDT | SPST-NO-DM, SPDT, DPST-NO-DM, DPDT |
| Max. Switching Voltage | 60VDC | 120VDC | 120VDC | 60VDC, 120VDC (with magnetic blowout) | 60VDC, 120VDC (with magnetic blowout) |
| Rated Current | 300A | 300A | 300A | 400A | 400A |
| Contact Material | AgCu Alloy | AgCu Alloy | AgCu Alloy | AgCu Alloy | AgCu Alloy |
| Coil Voltages | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC | 12V, 24V, 30V, 36V, 48V, 60V, 72V, 80V, 96V, 120VDC |
| Datasheet | Download | Download | Download | Download | Download |
| Enquire | Enquire | Enquire | Enquire | Enquire | Enquire |
| Features |  |  |  |  |  |
| Series | DSC50 | DSC50 | DSC60 | DSC60 | DSC80 |
| Description | An Industrial LVDC contactor with a rated load of 500A 60VDC. SPST-NO with optional auxiliary contact. Bi-stable latching is also an option. Busbar power terminals. UL Recognised. | An Industrial LVDC contactor with a rated load of 500A 60VDC. SPST-NO with optional auxiliary contact. Bi-stable latching is also an option. Busbar power terminals. UL Recognised. | An Industrial LVDC contactor with a rated load of 600A 60VDC. SPST-NO with optional auxiliary contact. Bi-stable latching is also an option. Busbar power terminals. UL Recognised. | An Industrial LVDC contactor with a rated load of 600A 60VDC. SPST-NO with optional auxiliary contact. Bi-stable latching is also an option. Busbar power terminals. UL Recognised. | An LVDC contactor with rated load of 800A at 60VDC with busbar power terminations. Optional auxiliary contact and bi-stable latching. Used for battery storage applications. UL Recognised. |
| Supplier | Durakool | Durakool | Durakool | Durakool | Durakool |
| Dimensions (L x W x H) mm | 57.5 x 64.8 x 103 (excluding busbars) | 57.5 x 64.8 x 103 (excluding busbars) | 57.5 x 71.1 x 103 (excluding busbars) | 57.5 x 71.1 x 103 (excluding busbars) | 135 x 63.5 x 149 |
| Contact Configuration | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM |
| Max. Switching Voltage | 60VDC | 60VDC | 60VDC | 60VDC | 60VDC |
| Rated Current | 500A | 500A | 600A | 600A | 800A |
| Contact Material | AgCu Alloy | AgCu Alloy | AgCu Alloy | AgCu Alloy | AgCu Alloy |
| Coil Voltages | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC |
| Datasheet | Download | Download | Download | Download | Download |
| Enquire | Enquire | Enquire | Enquire | Enquire | Enquire |
| Features |  |  |  |  |  |
| Series | DSC80 | DSC100 | DSC100 | DSC120 | DSC120 |
| Description | An LVDC contactor with rated load of 800A at 60VDC with busbar power terminations. Optional auxiliary contact and bi-stable latching. Used for battery storage applications. UL Recognised. | An LVDC contactor with rated load 1000A at 60VDC with busbar power terminations. Optional auxiliary contact and bi-stable latching. Used for battery storage applications. UL recognised | An LVDC contactor with rated load 1000A at 60VDC with busbar power terminations. Optional auxiliary contact and bi-stable latching. Used for battery storage applications. UL recognised | An LVDC contactor with rated load 1200A at 60VDC with busbar power terminations. Optional auxiliary contact and bi-stable latching. Used for batter storage applications. UL recognised. | An LVDC contactor with rated load 1200A at 60VDC with busbar power terminations. Optional auxiliary contact and bi-stable latching. Used for batter storage applications. UL recognised. |
| Supplier | Durakool | Durakool | Durakool | Durakool | Durakool |
| Dimensions (L x W x H) mm | 135 x 63.5 x 149 | 135 x 90.5 x 152 | 135 x 90.5 x 152 | 135 x 90.5 x 152 | 135 x 90.5 x 152 |
| Contact Configuration | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM |
| Max. Switching Voltage | 60VDC | 60VDC | 60VDC | 60VDC | 60VDC |
| Rated Current | 800A | 1000A | 1000A | 1200A | 1200A |
| Contact Material | AgCu Alloy | AgCu Alloy | AgCu Alloy | AgCu Alloy | AgCu Alloy |
| Coil Voltages | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC |
| Datasheet | Download | Download | Download | Download | Download |
| Enquire | Enquire | Enquire | Enquire | Enquire | Enquire |
| Features |  |  |  |  | |
| Series | DSC150 | DSC150 | DSC180 | DSC180 | |
| Description | An Industrial LVDC contactor rated 1500A 60VDC with busbar power terminations. Optional bi-stable latching and auxiliary contacts. Used for battery storage applications. UL recognised. | An Industrial LVDC contactor rated 1500A 60VDC with busbar power terminations. Optional bi-stable latching and auxiliary contacts. Used for battery storage applications. UL recognised. | An Industrial LVDC contactor rated 1800A 60VDC with busbar power terminations. Optional bi-stable latching and auxiliary contacts. Used for battery storage applications. UL recognised | An Industrial LVDC contactor rated 1800A 60VDC with busbar power terminations. Optional bi-stable latching and auxiliary contacts. Used for battery storage applications. UL recognised | |
| Supplier | Durakool | Durakool | Durakool | Durakool | |
| Dimensions (L x W x H) mm | 153 x 102 x 174.8 | 153 x 102 x 174.8 | 153 x 102 x 174.8 | 153 x 102 x 174.8 | |
| Contact Configuration | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM | SPST-NO-DM | |
| Max. Switching Voltage | 60VDC | 60VDC | 60VDC | 60VDC | |
| Rated Current | 1500A | 1500A | 1800A | 1800A | |
| Contact Material | AgCu Alloy | AgCu Alloy | AgCu Alloy | AgCu Alloy | |
| Coil Voltages | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC | 12V, 24V, 48V, 60VDC | |
| Datasheet | Download | Download | Download | Download | |
| Enquire | Enquire | Enquire | Enquire | Enquire |
Contact us for more information
