The flexible and reliable TFT LCD display range from Raystar continues to benefit from product innovation with two exciting new products.

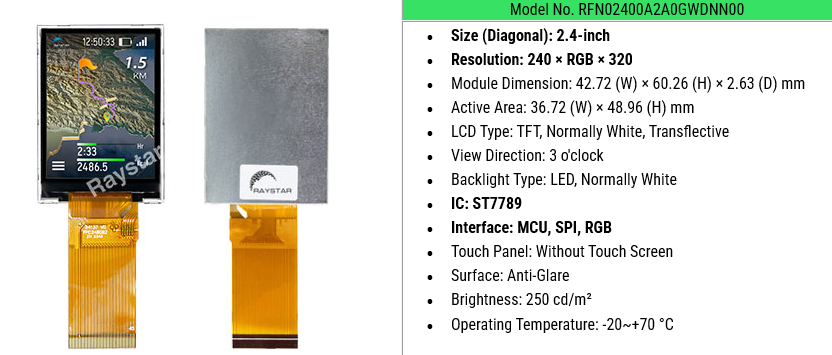

2.4-inch 240×320 Transflective TFT LCD Module
The RFN02400A2A0GWDNN00 is a 2.4-inch 240×320 TN Transflective TFT LCD Module designed to deliver excellent visibility in both indoor and outdoor lighting conditions. Featuring the ST7789 IC, it supports MCU, SPI, and RGB interfaces for flexible system integration. Its transflective design offers strong readability while maintaining low power consumption.
Built for long-term reliability, the RFN02400A2A0GWDNN00 operates within a wide temperature range of -20°C to +70°C and offers a 50,000-hour LED backlight lifetime. With a typical supply voltage of 3.3V, this display ensures stable and consistent performance for industrial controls, handheld GPS devices, and outdoor measuring instruments.

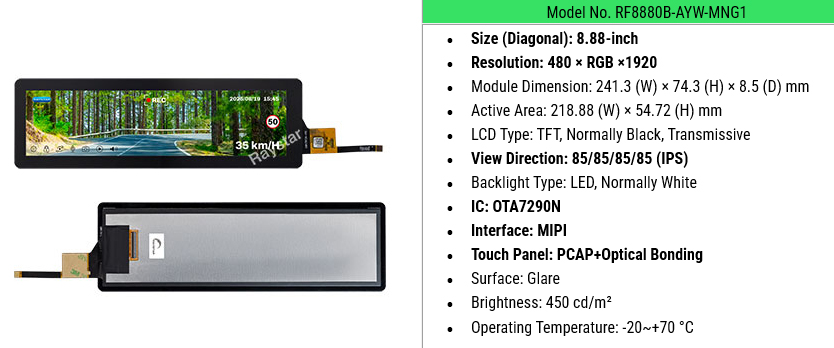

8.88-inch 480×1920 MIPI IPS Bar Type TFT Module with PCAP+Optical Bonding
The RF8880B-AYW-MNG1 is an 8.8-inch 480×1920 MIPI IPS bar type TFT LCD module equipped with a Projected Capacitive Touch Panel (PCAP) using optical bonding. The MIPI interface ensures high-speed, low-power transmission, and simplifying system integration for a variety of embedded and industrial applications.
Designed for performance, the RF8880B-AYW-MNG1 features an PCAP+Optical Bonding that enhances sunlight readability, improves visual contrast, and provides reliable touch accuracy. Operating with low power consumption (3.3V, 35 mA typ.), it’s an excellent choice for audio-visual systems, industrial controls, smart home devices, and medical instruments.
For more details on these products and the rest of Raystar’s range, please contact Solsta Embedded.
